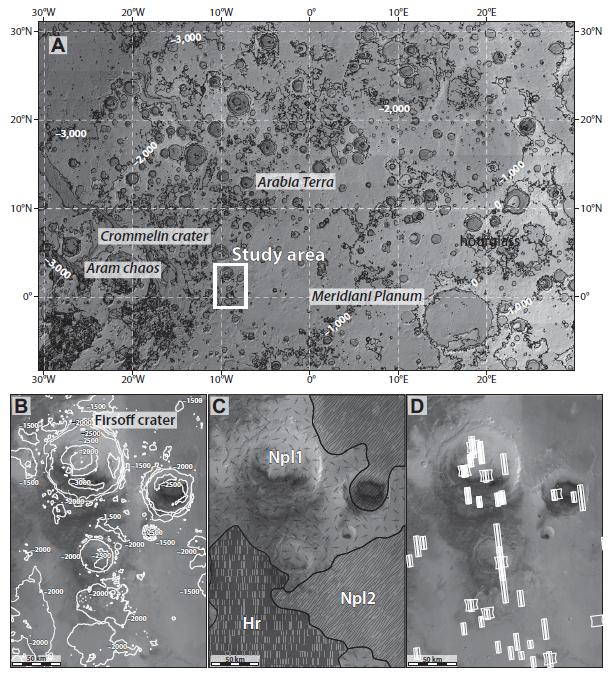

Location Map from Pondrelli et al. (IMAGE) Geological Society of America Caption Figure 1 is from Pondrelli et al. (A) Location map of the study area on MOLA-based shaded relief map. Topographic contours (in black, 1000 m spacing) are indicated. (B) High Resolution Stereo Camera (HRSC) mosaic of the mapped area. Topographic contours (in white, 500 m spacing) are indicated. (C) Excerpt of the geological map by Scott and Tanaka (1986) on an HRSC mosaic. Geologic units (see text for more details): Npl1--Noachian cratered unit of the plateau sequence; Npl2--Noachian subdued crater unit of the plateau sequence; Hr--Hesperian ridged plains material. (D) Footprints of High Resolution Imaging Science Experiment (HiRISE) coverage on an HRSC mosaic. The white fi lling indicates stereo pairs. The area is fully covered by Context Camera (CTX) imagery. Compact Reconnaissance Imaging Spectrometer for Mars (CRISM) scenes used in this study are recognizable by the hourglass shape. Click on the figure for a larger image. Credit Pondrelli et al. and GSA Bulletin Usage Restrictions Credit Pondrelli et al. and GSA Bulletin License Licensed content Disclaimer: AAAS and EurekAlert! are not responsible for the accuracy of news releases posted to EurekAlert! by contributing institutions or for the use of any information through the EurekAlert system.
