The family tree of CrystalTac (IMAGE)

Beijing Institute of Technology Press Co., Ltd

The family tree of CrystalTac

Caption

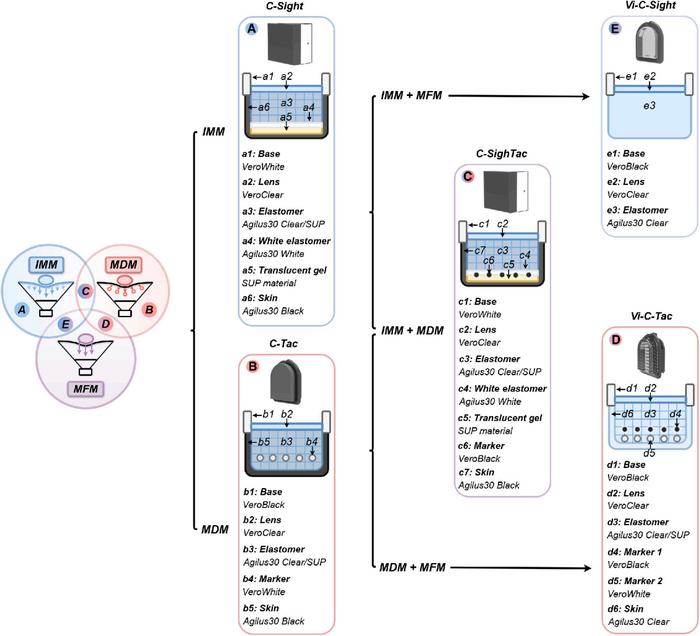

(A) C-Sight, IMM mechanism. (B) C-Tac, MDM mechanism. (C) C-SighTac, IMM + MDM mechanism. (D) Vi-C-Tac, MDM + MFM mechanism. (E) Vi-C-Sight, IMM + MFM mechanism. The diagram for each design illustrates its unique internal structure and material assignment.
