Figure 3 (IMAGE)

National Institutes of Natural Sciences

Figure 3

Caption

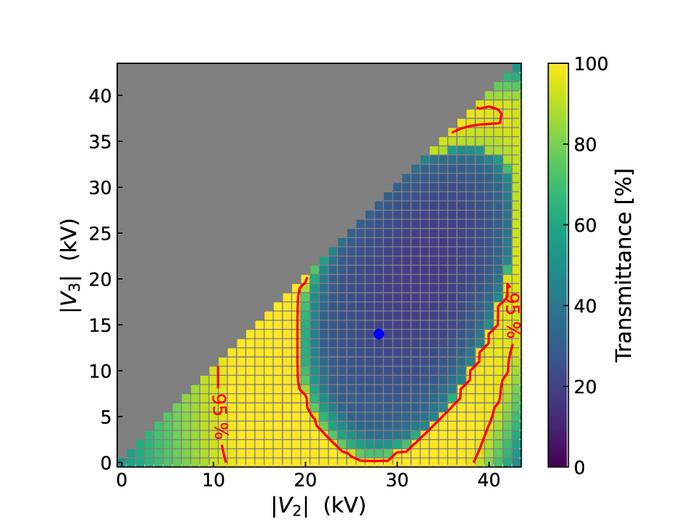

Beam transmission map as a function of electrode voltages V₂ and V₃ in the multistage accelerator shown in Fig. 1. The blue circle indicates the voltage setting before optimization.

By optimizing V₂ and V₃, an increase in the transmitted negative ion beam current can be expected.
