Figure | 3D stabilization system for sub-10 nm microscopy (IMAGE)

Light Publishing Center, Changchun Institute of Optics, Fine Mechanics And Physics, CAS

Figure | 3D stabilization system for sub-10 nm microscopy

Caption

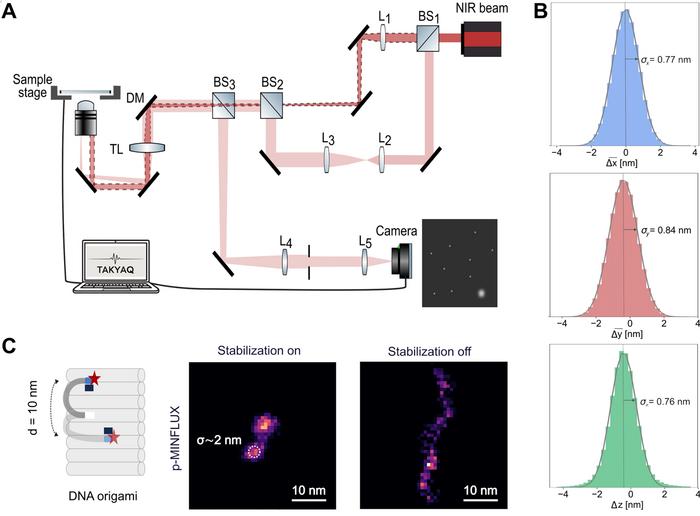

Figure | 3D stabilization system for sub-10 nm microscopy. A, Scheme of the optical design, using gold nanoparticles for lateral drift correction and a reflected beam for axial stabilization. B, Sub-nm precision in the three dimensions maintained over 130 minutes of continuous operation. C, Comparison of p-MINFLUX imaging of a 10 nm separated DNA origami structure with and without stabilization.

Credit

Lucía F. Lopez et al.

Usage Restrictions

Credit must be given to the creator.

License

CC BY
