Fig. 1. Resolving lunar soil magnetism at the microscopic scale. (IMAGE)
Caption

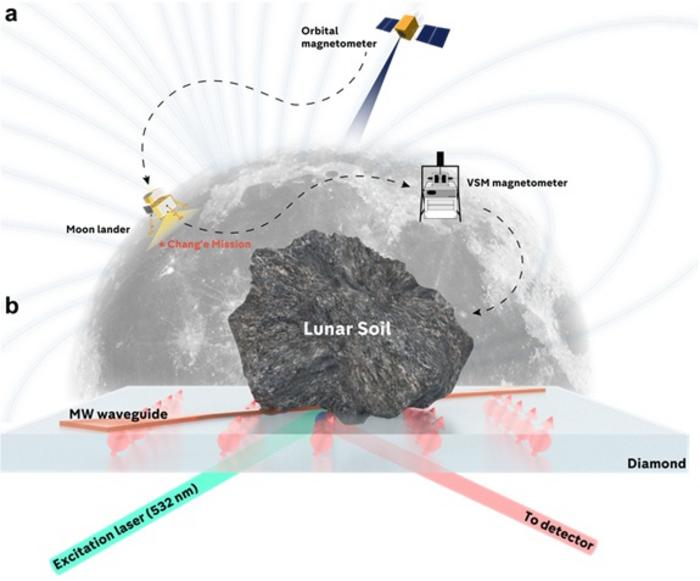

Fig. 1. Resolving lunar soil magnetism at the microscopic scale. (a) Schematic of various conventional techniques for resolving lunar magnetic signals at different scales (from top to bottom: orbital magnetometer, moon lander and VSM magnetometer). (b) Configuration of MMI platform. The lunar soil sample was placed on the diamond sensor. During the experiment, the microwave was delivered through waveguide and radiated to NV centers. A 532 nm laser was used to excite diamond for initializing NV centers and the generated fluorescence was delivered to sCMOS camera.
