Microstructural evolutions and failure mechanisms of tantalate HECs coatings subjected to differential thermal measurements (IMAGE)

Tsinghua University Press

Microstructural evolutions and failure mechanisms of tantalate HECs coatings subjected to differential thermal measurements

Caption

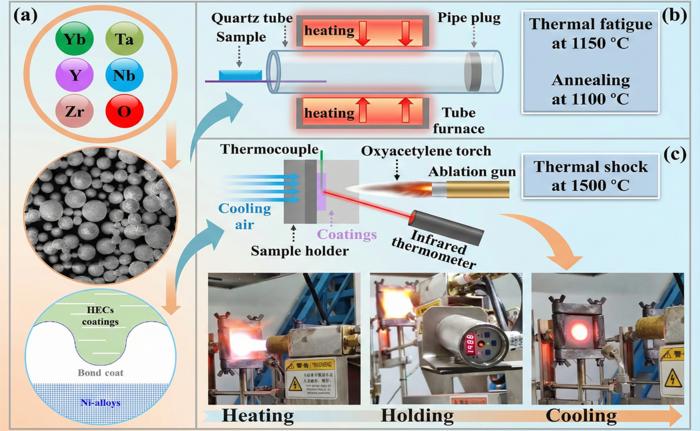

Schematic illustration of the two failure mechanisms of tantalate high-entropy ceramics coatings under thermal shock at 1500 °C and thermal fatigue at 1150 °C. During thermal shock, enormous thermal stress from temperature gradients and mismatches in thermal expansion coefficients drives transverse crack formation and coating spalling. During thermal fatigue, progressive TGO thickening and accumulative thermal stress lead to interfacial cracking when the h/R ratio exceeds 0.32, while sintering-induced stiffening causes surficial spalling.

Credit

Journal of Advanced Ceramics, Tsinghua University Press

Usage Restrictions

News organizations may use or redistribute this image, with proper attribution, as part of news coverage of this paper only.

License

Original content

Disclaimer: AAAS and EurekAlert! are not responsible for the accuracy of news releases posted to EurekAlert! by contributing institutions or for the use of any information through the EurekAlert system.
