Schematic of Novel Cell (IMAGE)

Fundação de Amparo à Pesquisa do Estado de São Paulo

Schematic of Novel Cell

Caption

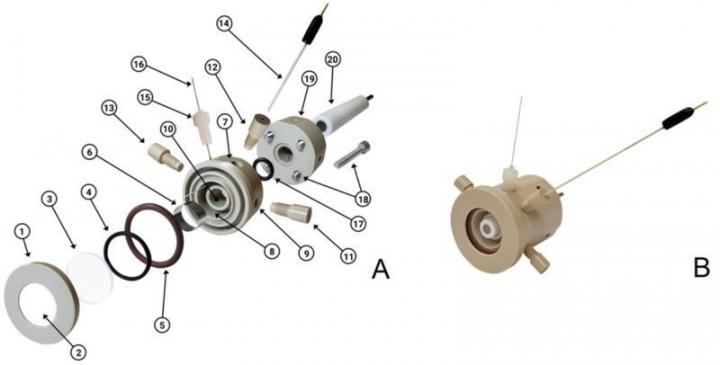

Schematic of novel cell: (1) threaded lip; (2) aperture for passing radiation beam; (3) window; (4, 5, 17) O-ring; (6, 16) counterelectrode; (7) cell body part 1; (8) chamber for electrolyte, counterelectrode and reference electrode; (9, 11, 13) electrolyte inlet-outlet; (10) work electrode inlet; (12) reference electrode inlet; (14) reference electrode; (15) counterelectrode inlet; (18) bolt; (19) cell body part 2; (20) work electrode.
