Directional Color Filter

Caption

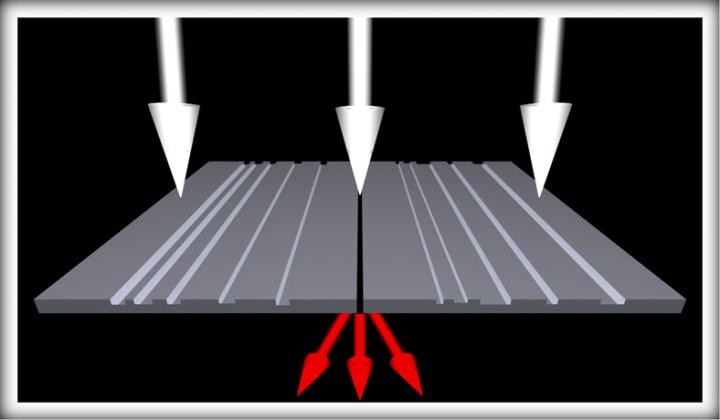

Schematic shows two different ways that white light interacts with a newly developed device, a directional color filter ruled with grooves that are not uniformly spaced. When white light illuminates the patterned side of the compact metal device at three different angles -- in this case, 0° degrees, 10° and 20° -- the device transmits light at red, green and blue wavelengths, respectively. When white light incident at any angle illuminates the device from the non-patterned side, it separates the light into the same three colors, and sends off each color in different directions corresponding to the same respective angles.

Credit

NIST

Usage Restrictions

Please credit NIST when using this animated GIF.
