Near-field Microscope Images of Loaded Infrared Antennas (IMAGE)
Caption

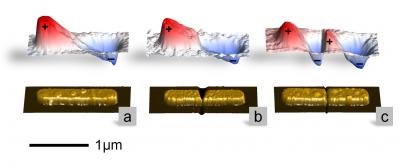

The bottom line depicts the topography, whereas the upper line plots the scanned near-field images. Figure a shows a metal nanorod that can be considered the most simple dipole antenna. The near-field image clearly shows the dipolar oscillation mode with positive fields in red and negative fields in blue color. By introducing a narrow gap at the center of the nanorod thus altering the "antenna load" (Figure c), two dipolar-like modes are obtained. When the gap is connected with a small metal bridge (Figure b), the dipole oscillation mode of Figure a can be restored as the near-field image clearly reveals.
Credit
Martin Schnell/CIC nanoGUNE
