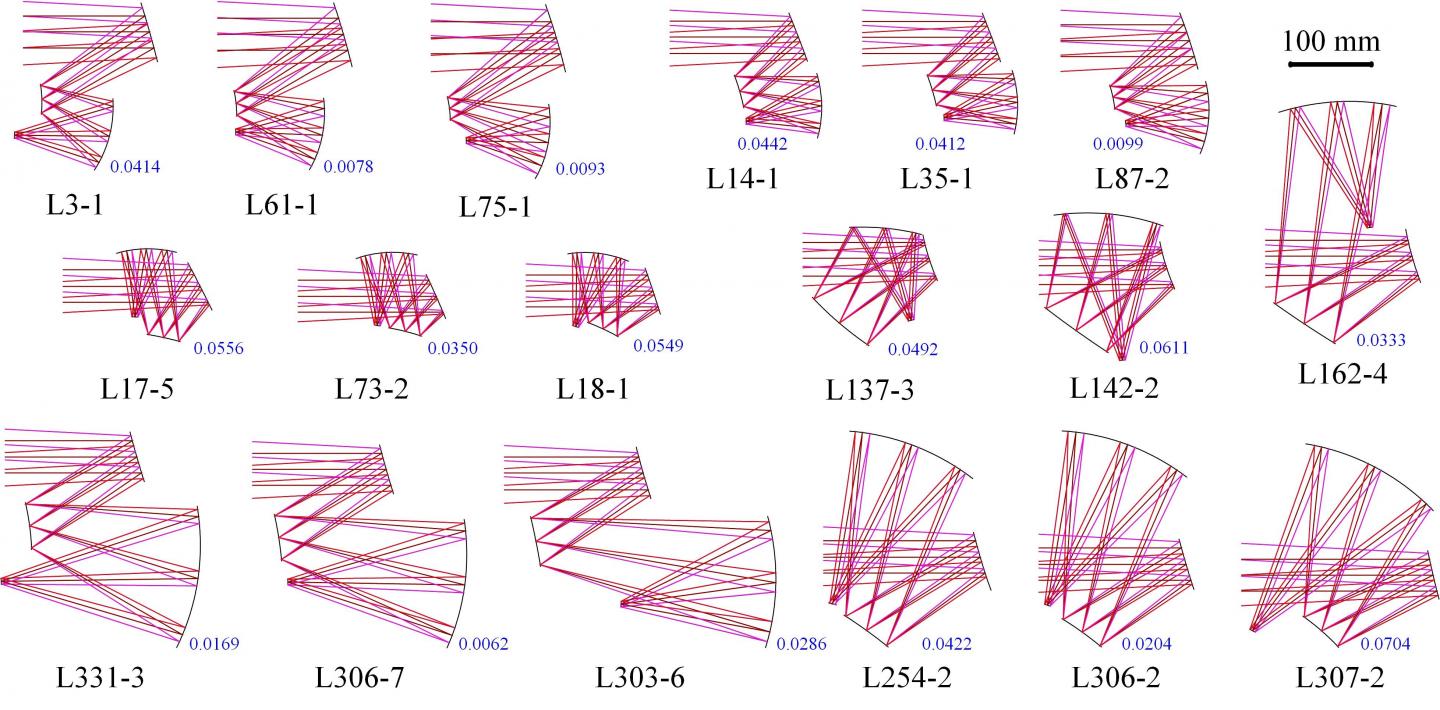

Figure | Partial output results of the three-mirror freeform system working in the LWIR band. (IMAGE)
Caption
The first design example is a three-mirror freeform imaging system that has a field-of-view of 8°×6°, a focal length of 50 mm and a F-number of 1.8, which works in the LWIR band. The computing task is deployed on the high-performance computing platform in Tsinghua University. Through 41.8 hours of automatic computation, 127 systems are obtained, all of which have the average RMS wavefront error (AVG WFE RMS) smaller than 0.075λ (λ = 10 μm). The imaging quality is considered to be diffraction-limited or near-diffraction-limited.
