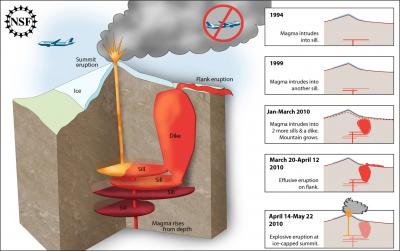

Eyjafjallajökull Volcano (IMAGE) U.S. National Science Foundation Caption This is an artist's conception illustrating the 3-D geometry (left) and timing of events (right column) at Eyjafjallajökull volcano in Iceland. The complicated "plumbing" inside the volcano consists of inter-connected conduits, sills, and dikes that allow magma to rise from deep within the Earth. The first three panels in the time series show distinct intrusive episodes of magma that caused measurable deformation and seismic events in 1994, 1999 and in the first several months of 2010. No eruptive activity occurred during this period of unrest. The fourth panel illustrates the first eruption, between March 20 and April 12, 2010, when basaltic magma (orange) erupted onto the Earth's surface on the flank of the mountain. The fifth panel shows the second eruption, between April 14 and May 22, when a different type of magma (trachyandesite, shown in red), erupted explosively under the ice-capped summit. The interaction of magma and ice initially increased the explosive activity, generating a plume of particles that rose as high as the 30,000-foot flight level and disrupted air traffic across Europe for weeks. Credit Zina Deretsky, National Science Foundation Usage Restrictions None License Licensed content Disclaimer: AAAS and EurekAlert! are not responsible for the accuracy of news releases posted to EurekAlert! by contributing institutions or for the use of any information through the EurekAlert system.
