Evolutionary History of a Hypothetical Multidomain Family (IMAGE)
Caption

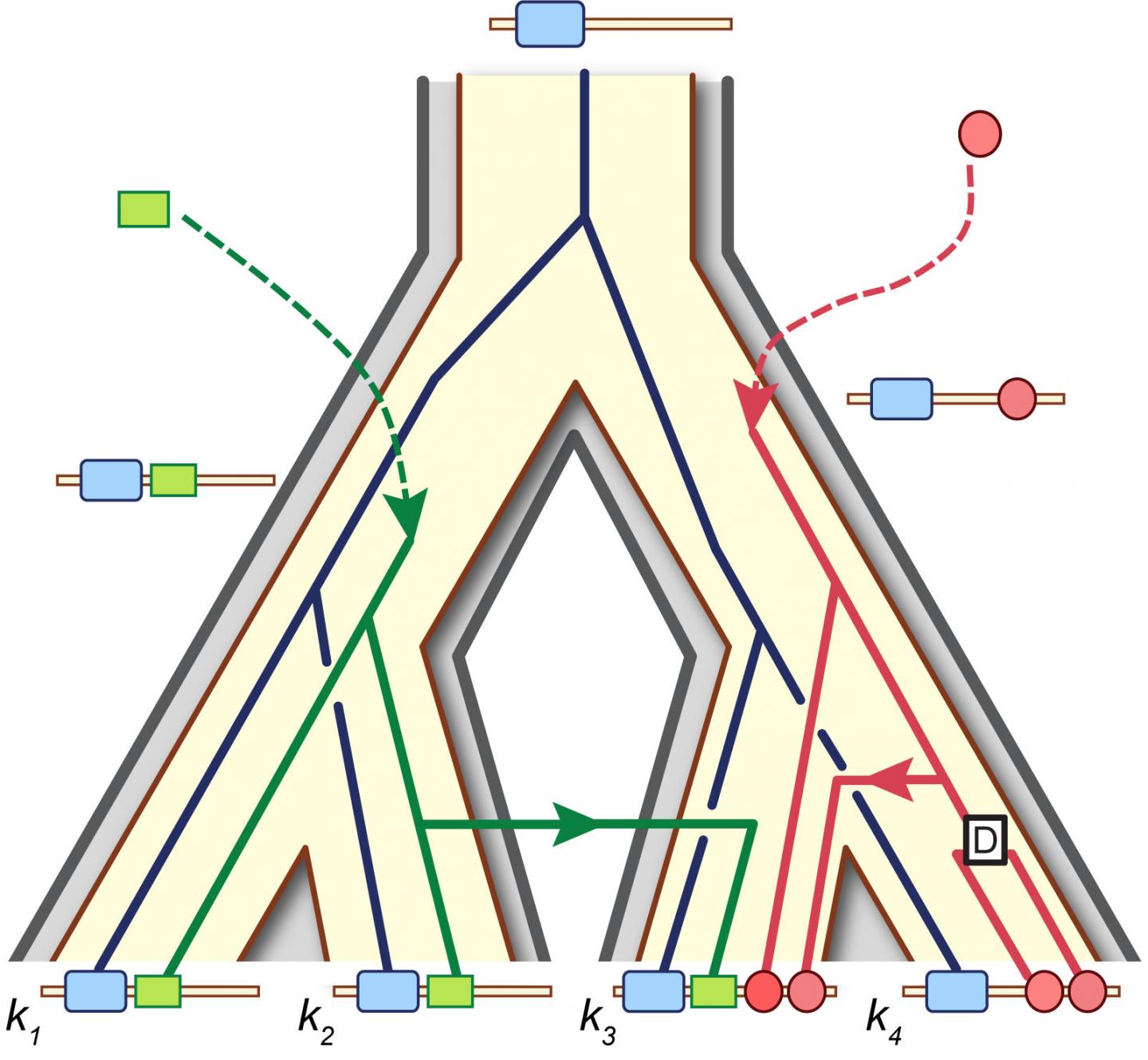

Multidomain families evolve on three levels of organization: species, the gene family, and co-evolving domains. This example shows the evolutionary history of a hypothetical multidomain family with four present-day genes, k1?k4, in two species. These genes encode multidomain proteins; domains are shown in pink, blue, and green. The composite evolutionary history of the gene family is depicted as domain trees embedded within a gene tree (cream), which is, in turn, embedded in a species tree (gray). The goal of the EAGER grant, Design Rules for Multidomain Proteins Across the Tree of Life, is to infer the principles which shape this evolutionary process.
