Structure of Gold Nanocluster of 24 Atoms (IMAGE)
Caption

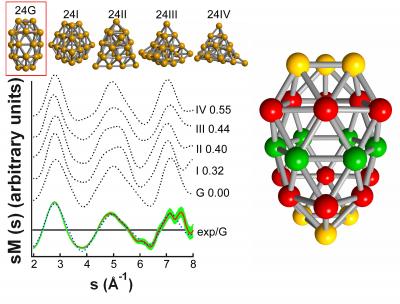

Theoretical electron scattering intensities from negatively charged gold nanclusters containing 24 atoms, calculated for the structures shown at the top. Each of the curves is denoted by a symbol that corresponds to a particular structure. Shown at the bottom is the experimental scattering data (solid red line) together with the calculated one that fits it in the best way (dotted line) -- that is, the tubular, capsule-like, structure marked G. The theoretically predicted best-fit structure is shown also on the right, with atoms in individual layer of the nanotube colored differently. The green strip accompanying the experimental data shows the experimental uncertainty.
Credit
Georgia Tech/Uzi Landman
Usage Restrictions
May use with credit attached.
