Pinpointing sources of water pollution with a robotic eel

Business Announcement

Ecole Polytechnique Fédérale de Lausanne

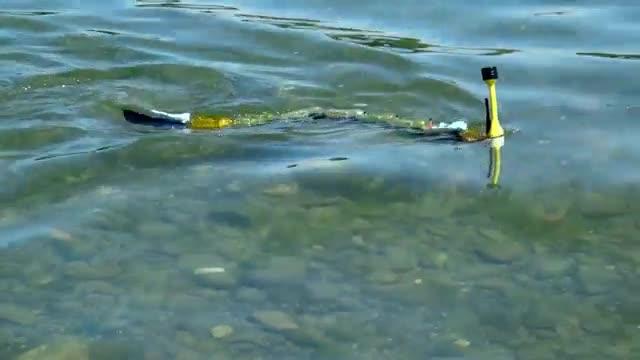

Pinpointing Sources of Water Pollution with a Robotic Eel 2

video: Researchers from EPFL, together with other institutes, have developed a robotic eel that swims through contaminated water to find the source of the pollution. The sensor-equipped robot can be controlled remotely or move on its own. In tests carried out in a small section of Lake Geneva, the robot was able to generate maps of water conductivity and temperature. view more

Credit: EPFL

EPFL researchers are taking part in an ambitious project funded by the Swiss NanoTera Program and aimed at developing a swimming robot that can detect the source of water pollution. The robot, named Envirobot, is equipped with chemical, physical and biological sensors and measures nearly 1.5 meters long. It moves through water like an eel, without stirring up mud or disturbing aquatic life. Its sensors take measurements at different locations in the water as it swims and send the data to a computer in real-time.

The robot is regularly tested in Lake Geneva. A recent test involved simulating water pollution by diffusing salt into a small area just off the shore, thus changing the water's conductivity. The researchers then let the robot swim in the contaminated area. The robot successfully mapped the variations in conductivity and generated a temperature map. The ultimate goal is for the robot to be able to detect heavy metals like mercury or other pollutants.

"There are many advantages to using swimming robots. They can take measurements and send us data in real-time -- much faster than if we had measurement stations set up around the lake. And compared with conventional propeller-driven underwater robots, they are less likely to get stuck in algae or branches as they move around. What's more, they produce less of a wake, so they don't disperse pollutants as much," says Auke Ijspeert, Head of EPFL's Biorobotics Laboratory (BioRob). "The Envirobot can follow a preprogrammed path, has the potential to make its own decisions and can independently track down the source of pollution." That could be by, for example, steadily swimming in the direction of increasing toxicity.

Sensors comprised of bacteria, crustaceans and fish cells

The robot is made up of numerous modules that each contains a small electric motor to change the curvature, enabling it to move smoothly through the water. The modular design also allows engineers to change its composition and vary its length as needed. "The robot can be easily taken apart, transported to a remote water reservoir, for example, and put back together to begin testing," says Behzad Bayat, another BioRob researcher.

Some of the modules contain conductivity and temperature sensors, while others have tiny, sophisticated chambers that fill up with water as the robot swims. These chambers contain miniaturized biological sensors that house either bacteria, small crustaceans or fish cells. The sensors work by observing how these organisms react when put into contact with the water -- thereby giving an indication of whether certain key pollutants are present and of the water toxicity in general. The sensors have already proven highly effective in laboratory experiments.

"For example, we developed bacteria that generate light when exposed to very low concentrations of mercury. We can detect those changes using luminometers and then transmit the data in the form of electrical signals," says Jan Roelof van der Meer, Project Coordinator and Head of the Department of Fundamental Microbiology at the University of Lausanne.

Another method involves using two compartments filled with Daphnia, which are tiny crustaceans that constantly move around. One compartment is exposed to the water being analyzed, and the other contains clean water. "The Daphnia's movement is affected by water toxicity. By comparing changes in their movement relative to the control group, we can get an idea of how toxic the water is," says van der Meer. And a third method consists of growing fish cells directly on electrodes. When toxins are present, the cells become disturbed and no longer touch each other. That interrupts the flow of electricity -- a change that can easily be detected.

For now the project team has tested only the conductivity and temperature sensors out in the field; tests of the biological sensors are harder to carry out. "We obviously can't contaminate a lake like we do the test water in our lab," says van der Meer. But tests are planned for later this summer. "For now, we will continue using salt as the contaminant until the robot can easily find the source of the contamination. Then we will add biological sensors to the robot and carry out tests with toxic compounds," he says.


The Envirobot project, part of the Nano-Tera research program, is a joint initiative involving EPFL, the University of Lausanne, the University of Applied Sciences and Arts of Western Switzerland (HES-SO) and the Swiss Federal Institute of Aquatic Science and Technology (EAWAG). Its cross-disciplinary approach brings together engineers, biologists and chemists.
