Figure 3 | Simulated and measured output characteristics of 6.5 μm/3 μm core diameter TBAY fibers (IMAGE)
Caption

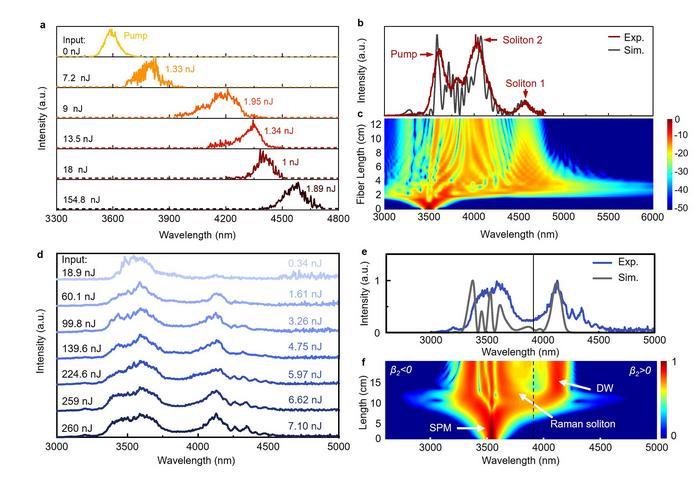

Figure 3 | Simulated and measured output characteristics of 6.5 μm/3 μm core diameter TBAY fibers. a, Measured tunable Raman soliton spectra at different incident pulse energies. b, Experimental (red) and simulated (gray) 4584 nm Raman soliton output spectra. c, Simulated spectral evolution of Raman solitons with fiber length. d, Measured 4177 nm dispersive wave spectra at different incident pulse energies. e, Experimental (blue) and simulated (gray) output spectra of 4177 nm dispersive wave. f, Simulated spectral evolution of 4177 nm dispersive waves with fiber length.
