Schematic layout of the ICFO attosecond beamline (IMAGE)
Caption

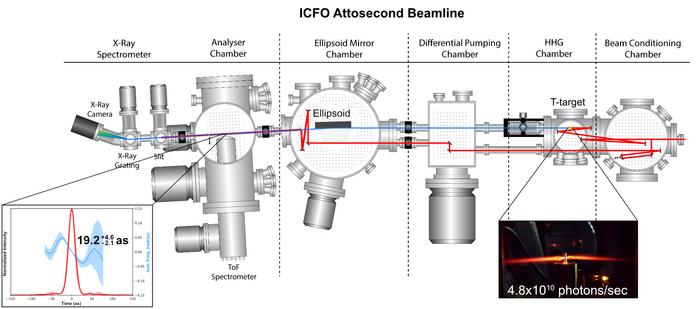

Schematic layout of the ICFO attosecond beamline, showing the sequential vacuum chambers and optical elements used to generate, condition, and analyze attosecond X-ray pulses. The diagram traces the propagation of the driving red infrared laser beam and the blue soft x-ray beam through the HHG generation chamber, differential pumping section, ellipsoid mirror chamber, analyzer chamber with spectrometer and grating, and final X-ray detection system, generating the graph that shows the detection of the 19.2 attosecond pulse of light.
