The change in the percentage of co-benefits exchanged (IMAGE)
Caption

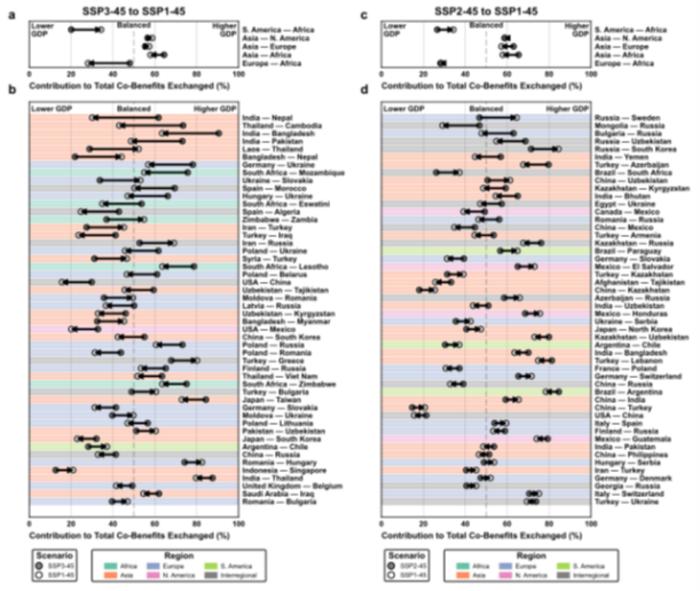

The change in the percentage of co-benefits exchanged (TEC × 100%) between regional and country pairs that is contributed by the higher GDP (first name). For the regional exchanges from the shared socioeconomic pathway (SSP) scenario SSP3-45 to SSP1-45 in 2040 (a), the arrow points from the less equal scenario (SSP3-45) to the more equal scenario (SSP1-45) and the gray dot represents SSP3-45 and the white dot represents SSP1-45. For the country exchanges (b), the arrow and dots are the same but the background shading indicates in which region the exchange occurs as labelled in the legend below the subplots; grey indicates exchange between different regions. Panels (c) and (d) are the same as (a) and (b), respectively, but for middle-of-the-road development (SSP2 vs SSP1) instead of fragmentation development.
Credit
O. Nawaz, Cardiff University and D. Henze, University of Colorado Boulder.
Usage Restrictions
None.
License
Original content
