Fig. 3. Hazardous fragments of (A) the carbon fiber-reinforced plastic (CFRP) laminate and (B) the aluminum plate in 2-dimensional velocity space. (IMAGE)

Beijing Institute of Technology Press Co., Ltd

Fig. 3. Hazardous fragments of (A) the carbon fiber-reinforced plastic (CFRP) laminate and (B) the aluminum plate in 2-dimensional velocity space.

Caption

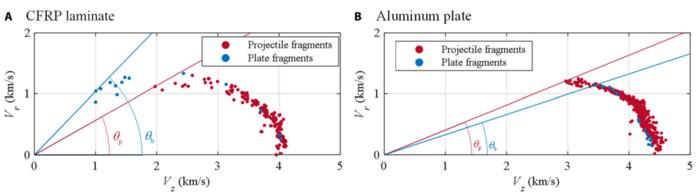

Fig. 3. Hazardous fragments of (A) the carbon fiber-reinforced plastic (CFRP) laminate and (B) the aluminum plate in 2-dimensional velocity space. The red and blue lines represent the maximum angles between the velocity vectors of the projectile and plate hazardous fragments and the z axis, respectively.
