Figure 3Open multimedia modalTypical designs of imaging probes for various hybrid imaging modalities (IMAGE)

Chinese Medical Journals Publishing House Co., Ltd.

Figure 3Open multimedia modalTypical designs of imaging probes for various hybrid imaging modalities

Caption

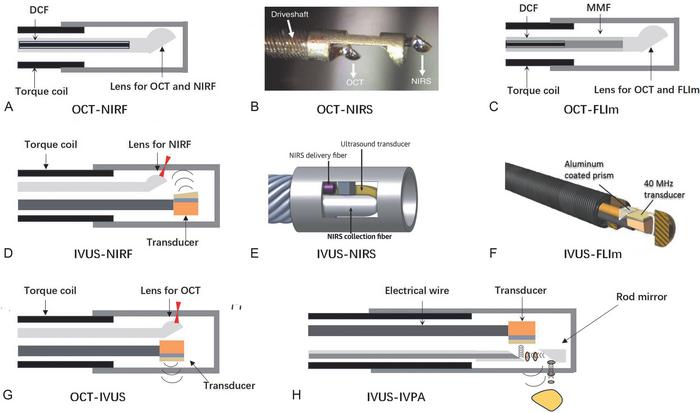

(A) OCT-NIRF; (B) OCT-NIRS; (C) OCT-FLIm; (D) IVUS-NIRF; (E) IVUS-NIRS; (F) IVUS-FLIm; (G) OCT-IVUS; (H) IVUS-IVPA. DCF: Double-clad fiber; FLIm: Fluorescence lifetime imaging; IVPA: Intravascular photoacoustic imaging; IVUS: Intravascular ultrasound; MMF: Multimode fiber; NIRF: Near-infrared fluorescence; NIRS: Near-infrared spectroscopy; OCT: Optical coherence tomography; Figures A, E, and F are adapted from Muller et al[10], Li et al[63], and Bec et al[64], respectively. All cited figures meet the requirements of the CC BY 4.0 International License.
