MAVEN Orbit Diagrams (IMAGE)

NASA/Goddard Space Flight Center

MAVEN Orbit Diagrams

Caption

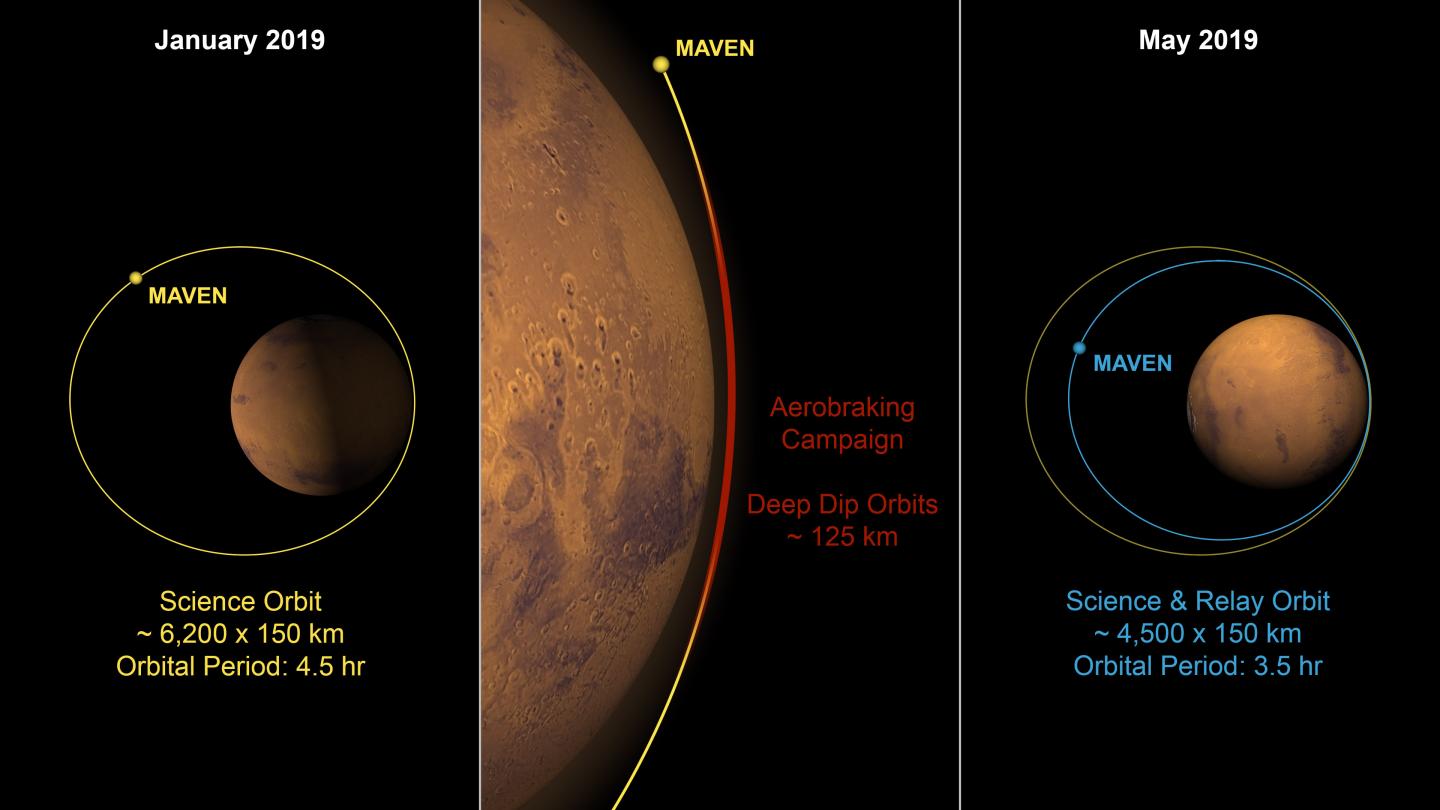

Aerobraking plan for MAVEN. (left) Current MAVEN orbit around Mars: 6,200 kilometers (~3,850 miles) at highest altitude, and an orbit period of about 4.5 hours. (center) Aerobraking process: MAVEN performs a series of "deep dip" orbits approaching to within about 125 kilometers (~78 miles) of Mars at lowest altitude, causing drag from the atmosphere to slow down the spacecraft. Over roughly 360 orbits spanning 2.5 months, this technique reduces the spacecraft's altitude to about 4,500 kilometers (~2,800 miles) and its orbit period to about 3.5 hours. (right) Post-aerobraking orbit, with reduced altitude and shorter orbit period.

Credit

NASA's Scientific Visualization Studio/Kel Elkins and Dan Gallagher
