Illustration of an Electrolyte-filled Electrochemical Cell (IMAGE)

University of Texas at Dallas

Illustration of an Electrolyte-filled Electrochemical Cell

Caption

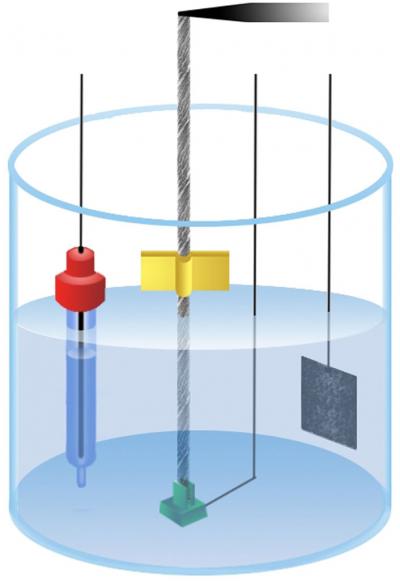

This is an illustration of an electrolyte-filled electrochemical cell used for characterizing torsional and tensile actuation for a carbon nanotube muscle, where the optional reference electrode, the actuating nanotube yarn electrode, and the counter electrode are from left to right. Torsional actuation rotates the paddle attached to the nanotube yarn.

Credit

Image courtesy of the University of Texas at Dallas
