Voltage Distribution

Caption

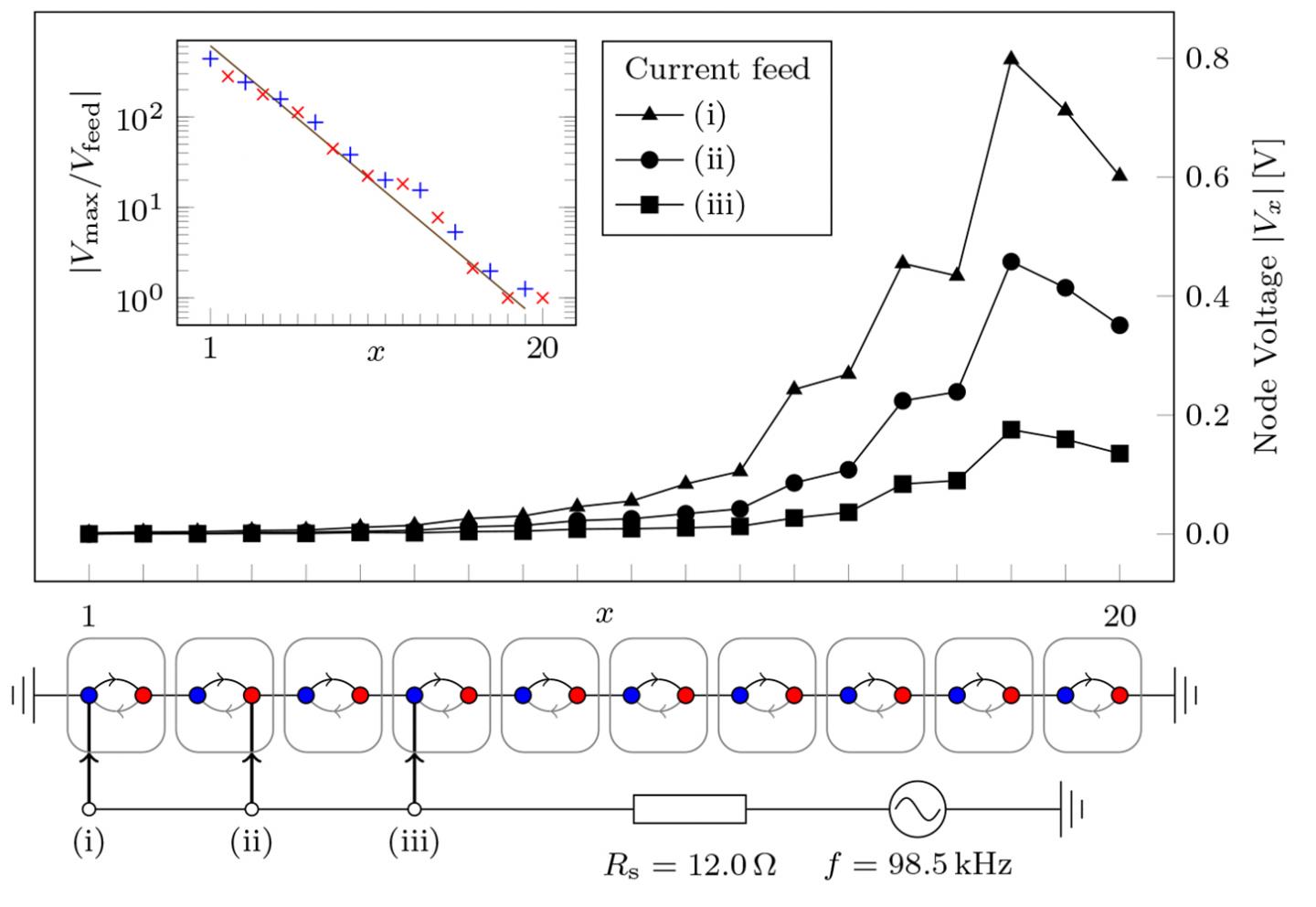

A current feed is imposed on the left side of a circuit with 20 unit cells realized by an external current source. Regardless of the location of the excitation, the voltage distribution is peaked at the right edge and decreases exponentially towards the left, which confirms the localization of all states at the right boundary.
