Abnormal Rise in Groundwater Levels after the 2016 Large Kumamoto Earthquakes (IMAGE)
Caption
After the Kumamoto (Japan) earthquake, an abnormal rise in groundwater level was noticeable in the recharge area of the wide-area groundwater flow system in the Kumamoto area.

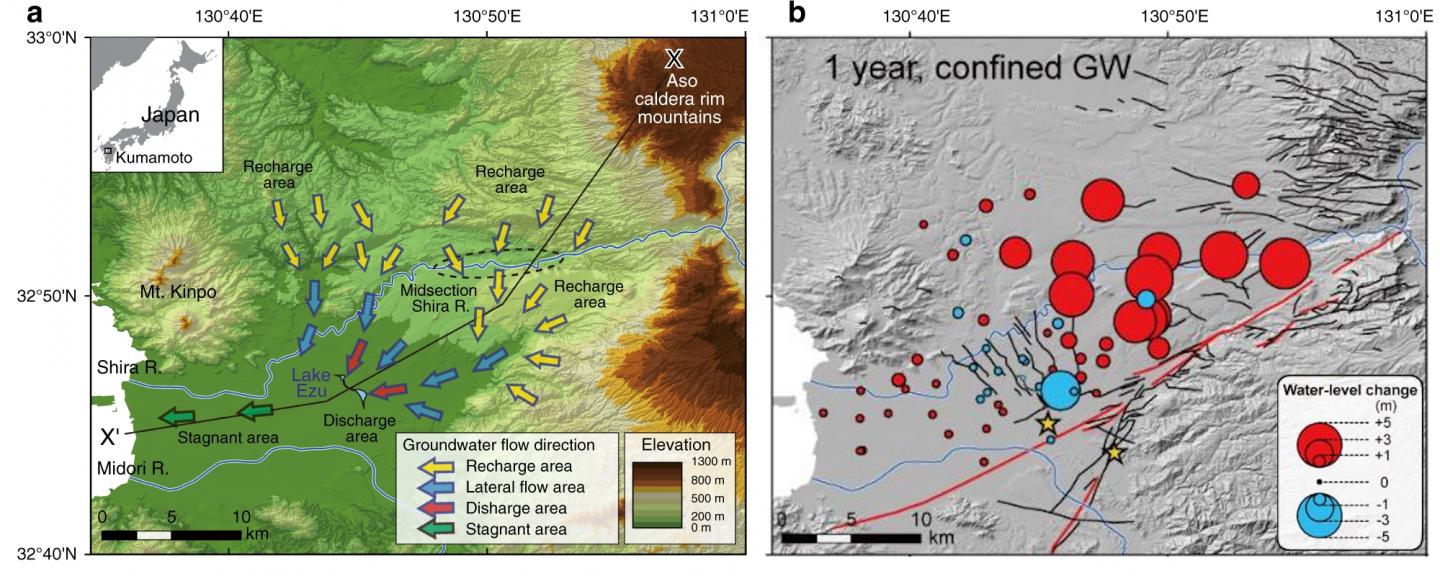

a. Outline of wide area groundwater flow system in the Kumamoto area.
b. Change in groundwater level one year after the earthquake (red circle: rising, blue circle: falling).
