Atomic Resolution Image (IMAGE)

Forschungszentrum Juelich

Atomic Resolution Image

Caption

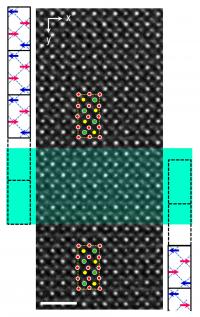

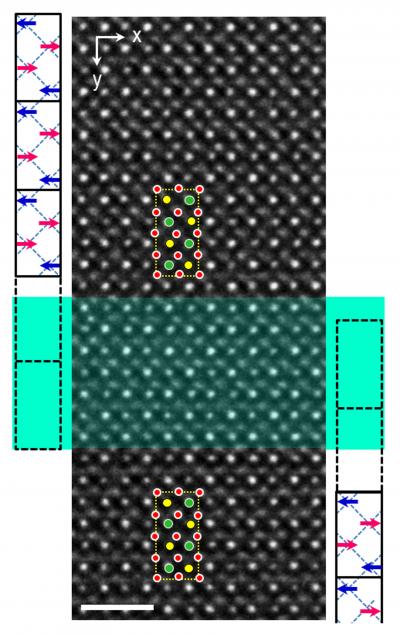

This is an atomic resolution electron microscopic image, with a boundary marked horizontally in cyan. The colored circles illustrate the constituent parts of the crystal; lead (yellow), zirconium (green) and oxygen (red). The arrows show the polarization, which is neutralized outside the boundaries. The white bar indicates a length of one nanometer.
