How Ionic Liquid Molecules Arrange in Electrically Charged Interfaces (IMAGE)
Caption

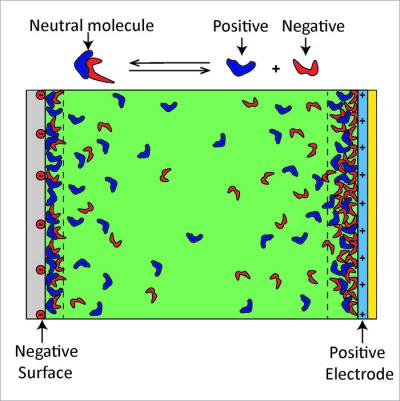

This is a cartoon depicting how the ionic liquid molecules arrange in electrically charged interfaces (not to scale). The green shading represents the 99.98 percent of the molecules that exist in a neutral state, the blue shapes represent positive ions and the red shapes represent negative ions. The reaction shown above the cartoon illustrates the fact that the molecules can exist in two states: a neutral ionic liquid molecule (99.98 percent of the molecules) and separated positive (blue) and negative (red) ions (0.02 percent of the molecules).
Credit
Matthew Gebbie
