Chaos in Electronic Oscillators (IMAGE)

The Henryk Niewodniczanski Institute of Nuclear Physics Polish Academy of Sciences

Chaos in Electronic Oscillators

Caption

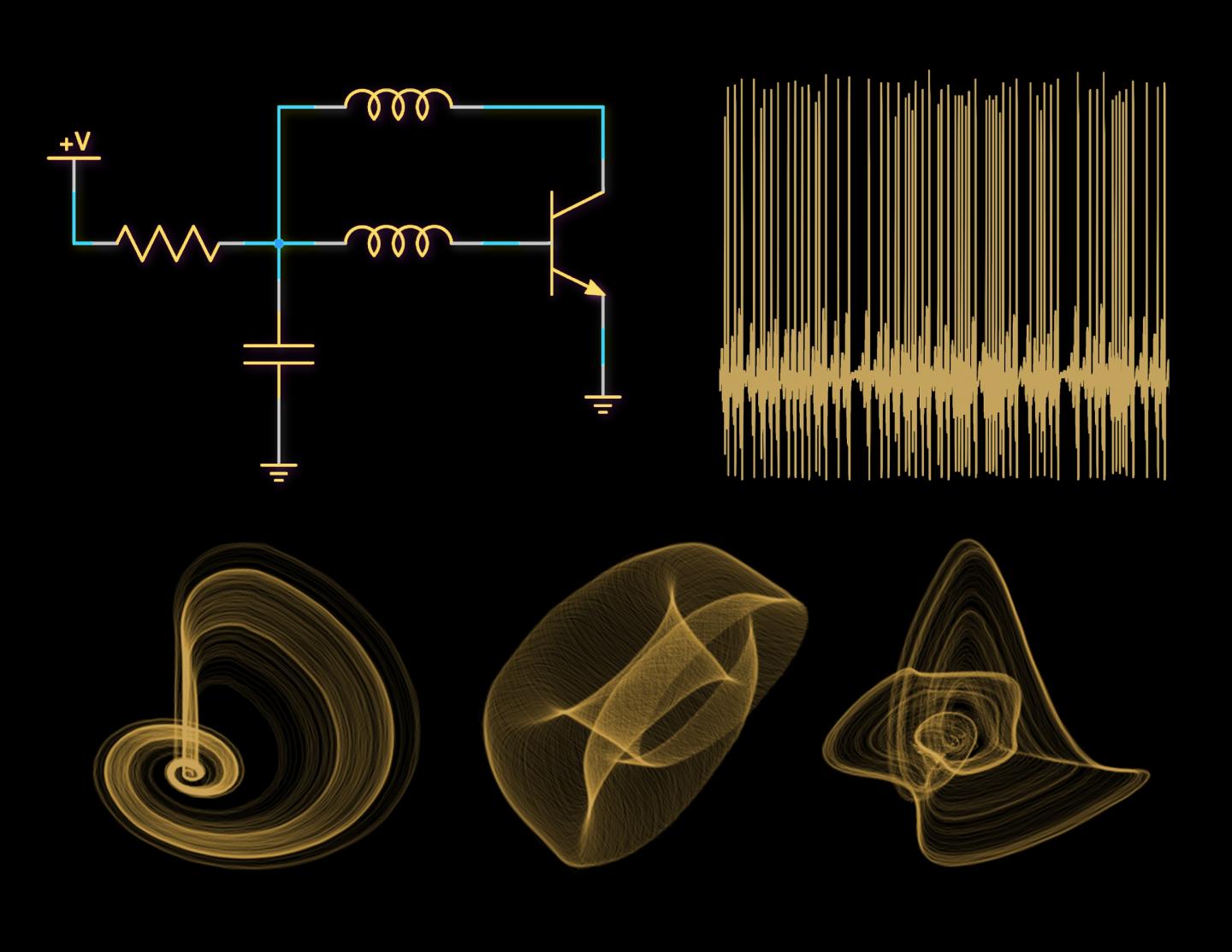

Chaotic voltage changes are common even for electronic circuits made up of only several elements. In the top left corner is a diagram of the simplest chaotic oscillator found by physicists from IFJ PAN in Cracow. On the right, a series of pulses showing a great resemblance to neural activity, generated by one of the newly discovered circuits. In the lower row several so-called attractors, illustrating the complexity of behaviour of the new circuits. (Source: IFJ PAN)
