Zone-plate Array (IMAGE)

Harvard University

Zone-plate Array

Caption

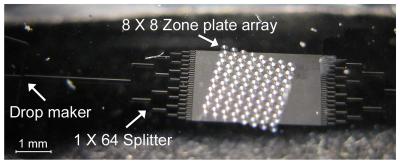

This is a microscope image of the microfluidic and optical device, consisting of a flow-focus drop maker, six layers of drop splitters, followed by 64 parallel microfluidic channels, and a zone-plate array which is aligned to the microfluidic channel array at a tilt angle.

Credit

The laboratory of Ken Crozier, Harvard School of Engineering and Applied Sciences.
