Figures 4 and 5 (IMAGE)
Caption

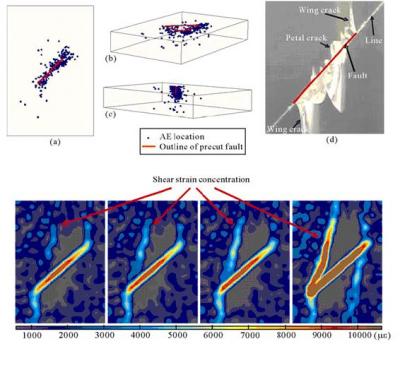

Figure 4: (a) AE distribution in plane; (b) 3-D view perpendicular to the fault plane; (c) 3-D view along the fault plane (d) petal cracks in resin sample. Figure 5: Concentration shear strain being observed at the wing tips first. Wing crack appearing at the later stage. With loading further applied, concentration shear strain appearing at certain place away from the fault tip, antiwing crack appearing.
