Schematic of Experimental Setup (IMAGE)
Caption

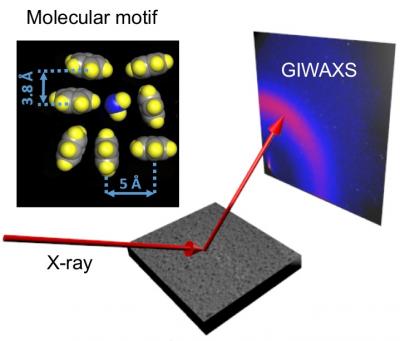

The sketch shows how the X-rays hit the membrane at a slight angle and scatter off the surface. They are then captured by a detector that records the so-called scattering pattern of the X-rays that is specific to the membrane's molecular structure. The top left panel shows two different molecular structures, which are also called molecular packing motifs. The results of the measurements suggest that the perpendicular motif (lower right) could be correlated with superior filtration properties.
Credit
Brookhaven National Laboratory
Usage Restrictions
OK to use with stories about this research.
