Fig. 3 Calculated Beam Intensity on the Focal Plane (IMAGE)

The University of Osaka

Fig. 3 Calculated Beam Intensity on the Focal Plane

Caption

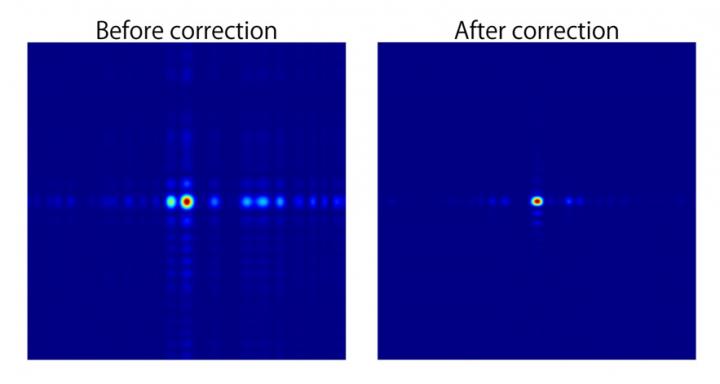

Calculated beam intensity on the focal plane before and after focusing mirror shape correction. Calculation area = 500 × 500 nm, X-ray energy = 9.1 keV.

Credit

Reprinted with modifications from the corresponding original paper

Usage Restrictions

None
