Figure 2 | experimental measurement of fluorescence enhancement. (IMAGE)

Light Publishing Center, Changchun Institute of Optics, Fine Mechanics And Physics, CAS

Figure 2 | experimental measurement of fluorescence enhancement.

Caption

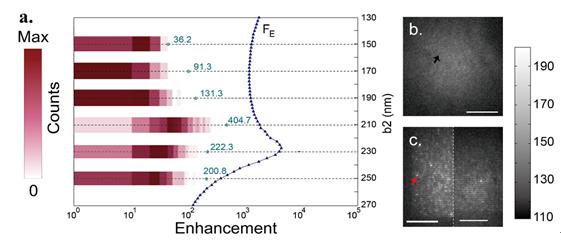

(a) Histogram of fluorescence enhancement with asymmetric double-bar antennas. Each histogram shows the distribution of fluorescence enhancement coming from molecules near asymmetric double-bar antennas with different bar-lengths. Maximums of simulated enhancement are indicated with blue dash-dotted lines (b) Fluorescence image of AIEE1000 in PMMA without antennas. (c) Fluorescence image of asymmetric antenna (left-half) and symmetric antenna (right-half) array coated with AIEE1000 in PMMA.

Credit

by Wenqi Zhao, Xiaochaoran Tian, Zhening Fang, Shiyi Xiao, Meng Qiu, Qiong He, Wei Feng, Fuyou Li, Yuanbo Zhang, Lei Zhou, and Yan-Wen Tan
