How the Micropump Works (IMAGE)
Caption

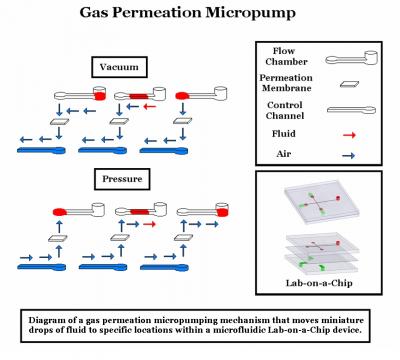

The illustrations on the left side of this figure show how a vacuum or air pressure applied to hair-sized control channels in the bottom layer (blue) of a new University of Utah micropump would pull or push air through the middle layer (a permeable membrane) to move a blood sample (red) from a well to a testing chamber and back again in the upper layer of a micropump. Legend is upper right. At lower right is an illustration of a micropump on a portion of a lab on a chip, and how the ump is made of three layers of a silicone polymer named PDMS.
Credit
Mark Eddings, University of Utah
