Raman amplification at 2.2 μm in silicon core fibers with prospects for extended mid-infrared source generation

Peer-Reviewed Publication

Light Publishing Center, Changchun Institute of Optics, Fine Mechanics And Physics, CAS

Concept, process technic and results

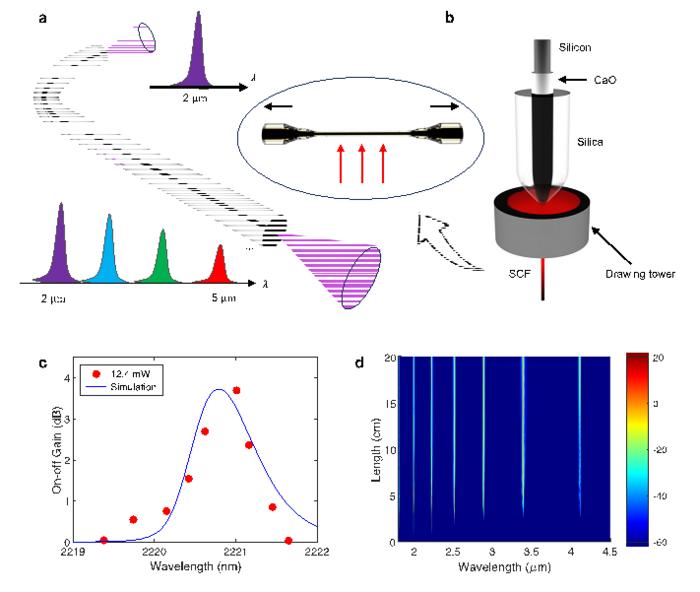

image: a. Concept of using SCFs to generate light at new mid-infrared wavelengths. b. Molten core method for fiber fabrication, with an inset showing the post-processed taper design. c. Stimulated Raman gain profile for a 2 μm pulse pump. d Spectral evolution of spontaneous cascaded Raman scattering when using an optimized pump source. view more

Credit: by Meng Huang, Shiyu Sun, Than S. Saini, Qiang Fu, Lin Xu, Dong Wu, Haonan Ren, Li Shen, Thomas W. Hawkins, John Ballato & Anna C. Peacock

The mid-infrared spectral region has attracted great research interest over the past decade, as it is important for many biomedical and sensing applications. However, there is still a major challenge to develop compact and tunable fiber-based light sources that operate at wavelengths beyond 2 mm. Raman scattering is a nonlinear process that can be used to generate or amplify optical signals in wavelength regions where traditional light sources are limited or unavailable. Thus, when constructed from high-power lasers and waveguides with broad transmission windows, Raman systems can be used to translate near-infrared pump sources into the mid-infrared to help fill the wavelength gaps in this region.

In a new paper published in Light Science & Application, an international research team, led by Professor Anna C. Peacock from Optoelectronics Research Centre, University of Southampton, United Kingdom, have demonstrated high levels of Raman amplification at wavelengths extending beyond 2 μm by making use of a highly nonlinear silicon core fiber (SCF) platform, as illustrated in Fig. 1a. Compared to planar silicon systems, SCFs have emerged as an exciting platform for mid-infrared Raman amplification as they offer extended propagation lengths, low propagation losses and efficient coupling to fiber lasers. The SCF used in this work was fabricated by a molten core drawing method, which allows for the rapid production of long lengths of fiber, shown in Fig. 1b. The fiber was then post-processed via a tapering procedure, which acts to enhance the nonlinear performance through optimization of the core material and size. The resulting SCF was produced with a transmission loss of only 0.2 dB/cm, with a consistent micrometer-sized tapered waist diameter over a length of 6 cm.

By pumping the optimized SCF with a thulium-doped fiber laser, the team have demonstrated Raman emission and amplification at 2.2 μm. For the case of stimulated Raman amplification shown in Fig. 1c, an on-off peak gain of ~30 dB was achieved for a pump power of only ~10 mW, thanks to the large Raman gain coefficient of the crystalline core material. Importantly, the low losses of the SCF also open a route to extend the reach of the Raman wavelength shifting out to 4 mm and beyond via cascaded processes, as shown in Fig. 1d. Importantly, this work represents the first demonstration of mid-infrared Raman scattering in any silicon waveguide system – either fiber or chip-based – and thus provides a crucial step towards the development of robust, compact and tunable systems in this spectral band.
