Graphene addition for enhancing the critical current density of Bi-2223 superconductors

Researchers use a new synthesis method for Bi-2223 high-temperature superconductors and explore the effects of graphene addition on its superconductivity

Peer-Reviewed Publication

Shibaura Institute of Technology

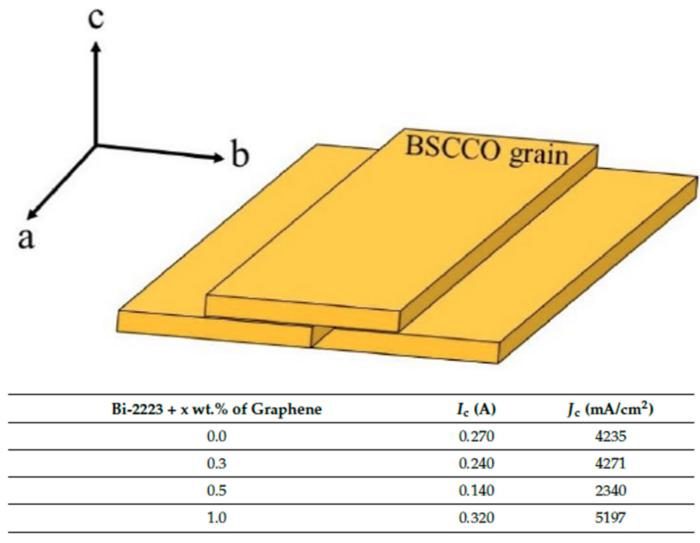

Variation of critical current density of Bi-2223 (a bismuth strontium calcium copper oxide) with graphene addition


(Top) Schematic diagram demonstrating the parallel alignment of the BSCCO grain to its ab-plane. (Bottom) The table highlights that the Bi-2223 high-temperature superconductor sample with 1.0 weight percent graphene exhibits the highest critical current density (Jc).

view more

Credit: Muralidhar Miryala from SIT, Japan Image Source Link:

Superconductors are materials that offer zero electric resistance to the flow of current on being cooled down below a certain critical temperature. Typically, superconductors have a very low critical temperature, close to absolute zero. However, a class of superconductors, known as high-temperature superconductors (HTS) have a critical temperature above 77 Kelvin, the boiling point of liquid nitrogen. They have been extensively used for the development of superconducting devices in many industries.

Bismuth strontium calcium copper oxide, often referred to as BSCCO, is a class of HTS which has been widely studied and used in engineering, medical equipment, mining, and transport systems. One of its members, (Bi1.6Pb0.4)Sr2Ca2Cu3O10 or Bi-2223, possesses the highest superconducting critical temperature, and has garnered significant attention for potential applications. However, limitations such as weak critical current density and weak magnetic flux pinning and a complex synthesis route have hindered the development and progress of Bi-2223 superconductors.

To address these shortcomings, a group of researchers, led by Professor Muralidhar Miryala from Materials for Energy and Environmental Laboratory of Superconducting Materials at Shibaura Institute of Technology and Professor Awang Kechik Mohd Mustafa from the Department of Physics of the Faculty of Science at Universiti Putra Malaysia, have investigated the effects of graphene nanoparticle addition on the phase formation and superconducting properties of Bi-2223.

In this study, we report the effects on the critical temperature, critical current density, and structural and morphological properties of Bi-2223, when graphene nanoparticles are integrated into them using a novel co-precipitation method,” explains Prof. Miryala. This study was published in Volume 13, Issue 15 of the Nanomaterials journal on July 28, 2023. It is co-authored by Abdullah Siti Nabilah, Nursyahirah Kamarudin Aliah, Soo Kien Chen, Kean Pah Lim, Abdul Karim Muhammad Khalis, and Shaari Abdul Halim from Universiti Putra Malaysia, Abidin Talib Zainal from Jeonbuk National University, Baqiah Hussein from Dezhou University, and Hashim Azhan and Ermiza Suhaimi Nurbaisyatul from Universiti Teknologi MARA Pahang.

Since graphene possesses excellent electrical, mechanical, and chemical properties, and both graphene and Bi-2223 are grown as sheet-like microstructures, graphene nanoparticles are quite appealing as additives. The team examined the phase formation and crystal structures of different Bi-2223 samples with 0.3, 0.5, and 1.0 weight percent graphene nanoparticles, respectively, using x-ray diffraction (XRD), and compared them to those of a pure sample. They also investigated the critical temperature of the samples using a method called alternate current susceptometry (ACS).

The XRD results revealed that a primary Bi-2223 phase and a secondary Bi-2212 phase, another BSCCO, dominated the samples. Additionally, the volume fraction constituted by the Bi-2223 phase was higher for samples with 0.3 and 0.5 weight percent graphene and slightly lower for the sample containing 1.0 weight percent graphene. Moreover, ACS analysis revealed that the onset critical temperature, phase lock-in temperature, and coupling peak temperature—measures of superconducting abilities—decreased with an increase in graphene addition.

Interestingly, the sample with 1.0 weight percent graphene showed the highest critical current density and possessed the microstructure best aligned for the formation of Bi-2223 superconductors. “These results suggest that the addition of graphene nanoparticles, acting as impurities, have the potential to enhance the current density of Bi-2223 superconductors,” highlights Prof. Miryala.

Explaining the potential future applications of Bi-2223 superconductors with enhanced current density, Prof. Miryala adds, “These superconductors have the potential to facilitate diverse fields, such as MRI imaging, power generation and distribution, renewable energy integration, transportation and aerospace, particle accelerators, electronics and quantum computing, environmental sustainability, industrial and manufacturing processes, and educational and scientific outreach.”

Here’s hoping that these findings pave the way towards accelerated research and development of Bi-2223 superconductors in the future!





About Shibaura Institute of Technology (SIT), Japan

Shibaura Institute of Technology (SIT) is a private university with campuses in Tokyo and Saitama. Since the establishment of its predecessor, Tokyo Higher School of Industry and Commerce, in 1927, it has maintained “learning through practice” as its philosophy in the education of engineers. SIT was the only private science and engineering university selected for the Top Global University Project sponsored by the Ministry of Education, Culture, Sports, Science and Technology and will receive support from the ministry for 10 years starting from the 2014 academic year. Its motto, “Nurturing engineers who learn from society and contribute to society,” reflects its mission of fostering scientists and engineers who can contribute to the sustainable growth of the world by exposing their over 8,000 students to culturally diverse environments, where they learn to cope, collaborate, and relate with fellow students from around the world.



About Professor Muralidhar Miryala from SIT, Japan

Dr. Muralidhar Miryala is a Professor at the College of Engineering/Graduate School of Science and Engineering and a member of the Board of Councilors at Shibaura Institute of Technology (SIT). His primary research interests comprise solid-state physics and materials science, with a particular focus on materials for energy and the environment, including high-temperature superconductors. He has an extensive publication record, boasting over 550 research items, including numerous Japanese national and international patents, books, review articles, articles, newspapers, and public reports. Dr. Miryala has received several prestigious awards in recognition of his research contributions, including the 2021 Pravasi Bharatiya Samman Award from the President of India and the 2021 SIT Excellent Education Award presented by the Chairman of the Board of Directors.


Funding Information

This research was funded by the Ministry of Higher Education (MOHE) Malaysia under FRGS grant FRGS/1/2017/STG02/UPM/02/4. Additionally, this work was partly supported by Shibaura Institute of Technology (SIT) International Research Center for Green Electronics.
