Multi-dimensional multiplexing optical secret sharing framework with cascaded liquid crystal holograms

Peer-Reviewed Publication

Compuscript Ltd

fig 1

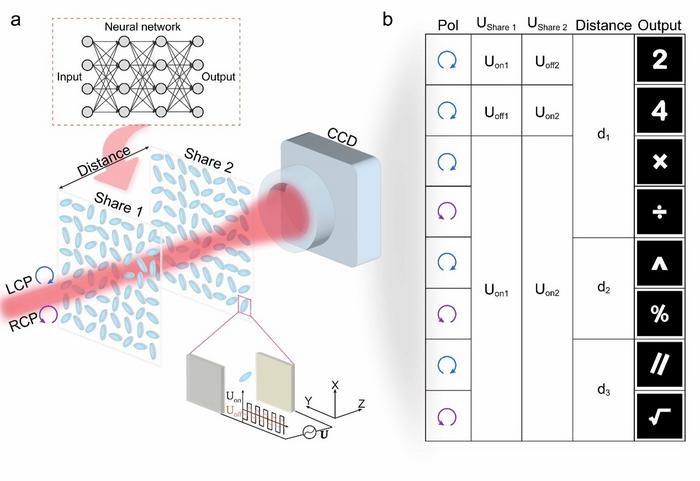

Figure 1: The schematic diagram of multi-dimensional multiplexing optical secret sharing framework with cascaded liquid crystal holograms

view more

Credit: OEA

A new publication from Opto-Electronic Advances,  10.29026/oea.2024.230121 discusses a multi-dimensional multiplexing optical secret sharing framework with cascaded liquid crystal holograms.


Information security has become particularly crucial under the background of the big data era. Optical secret sharing schemes encrypt information and physically divide it into different shares. Information can only be decrypted by cascading a sufficient number of shares. These schemes can be widely applied to information encryption and anti-counterfeiting due to high security and rapid information processing capabilities. Holography is a significant method for optical encryption, and it can also realize holographic multiplexing by using different physical dimensions of light as independent information channels. The metasurface holographic multiplexing technology meets the urgent needs for miniaturization and integration of optical systems. However, there are significant challenges in building a cascaded optical secret sharing platform with dynamic tunability and high diffraction efficiency, limited by precise manufacturing requirements and inherent physical properties of materials. For the realization of low-cost, convenient, high-efficiency, and high-capacity cascaded optical secret sharing schemes, anisotropic structured liquid crystal optoelectronic materials with high diffraction efficiency and voltage-tunable switch features provide a novel approach.


The authors of this article propose a multi-dimensional multiplexing optical secret sharing framework with cascaded liquid crystal holograms. In this framework, the polarization state of the incident light and the distance between the liquid crystal holograms are used as the decryption keys of encrypted information. An error back-propagation neural network with angular spectrum diffraction theory was created, accomplishing the inverse design of complex multi-constraint and multi-layer cascading problems. The multi-dimensional inputs in the encryption process of the network, such as the polarization state of the incident light, the external voltage applied to the cascaded liquid crystal shares and their distances, significantly enhance the security of the secret information. This allows for the ultra-secure transmission of multiple information channels simultaneously, overcoming the limitations of traditional holographic encryption methods. Firstly, the secret image is hidden in different shares (individual liquid crystal holograms) and can only be decrypted through cascading the shares. Even if one of the shares is stolen, it is impossible to retrieve the final secret information and only an authentication image will be displayed, greatly enhancing the security of the secret sharing platform. Secondly, the multi-dimensional multiplexing technique increases the complexity of the secret keys, enhancing both information security and capacity. Furthermore, the encryption information channels can be further increased by adding more secret shares and utilizing linear polarization state multiplexing. Interestingly, the flexible electric tuning capability of liquid crystal devices effectively heightens the security of the proposed secret sharing framework. The externally applied voltage can be independently mapped to different secret shares, setting more stringent conditions for information decryption and significantly reducing the possibility of information leakage.


The multiplexing of eight images by controlling the polarization state of the incident light was experimentally demonstrated, the distance between the shares, and applying different voltage states externally to the liquid crystal layers. In this scheme, the secret information is decomposed and distributed into two mutually constrained liquid crystal holograms. When these two liquid crystal holograms are cascaded together, it is only necessary to adjust the external applied voltage (Uon, Uoff) of each liquid crystal share, so that each individual hologram can reconstruct an authentication image (number 2 or 4) at a specific position. Furthermore, under high modulation efficiency voltage (Uon) for each liquid crystal share, six independent operation images (mathematical symbols) can be decrypted using different secret keys, which include the polarization of the incident light and the distance between the cascaded liquid crystal holograms. The final encrypted information can be obtained through secondary decoding by performing mathematical operations displayed by different operation images between the authentication images. The mature manufacturing technology of liquid crystal components makes this framework more practical and multifunctional. With its convenient design, low-cost manufacturing, and ultra-high security, this multi-dimensional multiplexing optical secret sharing scheme has great potential in applications of ultra-high capacity information storage, dynamic holographic display, and multifunctional optical information processing.


Keywords: holographic encryption / optical secret sharing / cascaded liquid crystal hologram / multi-dimensional multiplexing

# # # # # #

Professor Min Gu is the Executive Chancellor of the University Council and Dean of the Institute of Photonic Chips of University of Shanghai for Science and Technology. His team conducts interdisciplinary research, aspiring to develop science and technology in on-chip photonic artificial intelligence devices for faster, greener and safer future. His research interests include photonic chips, all-optical deep learning, super-resolution optical microscopy, and optical storage. His representative works have been published in journals such as Nature, Science, Nature Photonics, Nature Nanotechnology, Nature Communications, and Science Advances.


Yan-Qing Lu received both his B.S. and Ph.D. degrees from Nanjing University, China, in 1991 and 1996, respectively. He has five years of experience in telecom industries in the United States and China. He is currently a Changjiang distinguished professor at Nanjing University and a fellow of the Chinese Society of Optical Engineering, Chinese Optical Society, and Optical Society of America. His research interests include liquid crystal photonics, fiber optics, and nonlinear optics.


Xinyuan Fang, a professor at the University of Shanghai for Science and Technology, doctoral supervisor, and assistant dean of the Institute of Photonics Chips. His main research areas include multi-dimensional optical field manipulation, optical neural networks, and holography. To date, he has published 26 papers as the first or corresponding (including co-corresponding) author in journals such as Science, Nature Photonics, Nature Nanotechnology, Advanced Photonics, PhotoniX, Opto-Electronic Advances, Nano Letters, and Laser & Photonics Reviews.


Peng Chen obtained his B.S. and Ph.D. degrees in material physics and optical engineering from Nanjing University, China, in 2014 and 2019, respectively. He is currently an associate professor at the College of Engineering and Applied Sciences at Nanjing University. His research interests focus on nanostructured liquid crystals and corresponding optical applications.

# # # # # #

Opto-Electronic Advances (OEA) is a high-impact, open access, peer reviewed monthly SCI journal with an impact factor of 8.933 (Journal Citation Reports for IF2021). Since its launch in March 2018, OEA has been indexed in SCI, EI, DOAJ, Scopus, CA and ICI databases over the time and expanded its Editorial Board to 36 members from 17 countries and regions (average h-index 49).

The journal is published by The Institute of Optics and Electronics, Chinese Academy of Sciences, aiming at providing a platform for researchers, academicians, professionals, practitioners, and students to impart and share knowledge in the form of high quality empirical and theoretical research papers covering the topics of optics, photonics and optoelectronics.


# # # # # #


More information:

Editorial Board:

All issues available in the online archive (

Submissions to OEA may be made using ScholarOne (

ISSN: 2096-4579

CN: 51-1781/TN

Contact Us:

Twitter: @OptoElectronAdv (

WeChat: OE_Journal

# # # # # #


Article reference:
Li KY, Wang YM, Pi DP et al. Multi-dimensional multiplexing optical secret sharing framework with cascaded liquid crystal holograms. Opto-Electron Adv 7, 230121 (2024). doi: 10.29026/oea.2024.230121
