New study finds “sweet spot” for length of yarn-shaped supercapacitors

Peer-Reviewed Publication

North Carolina State University

YSC no text

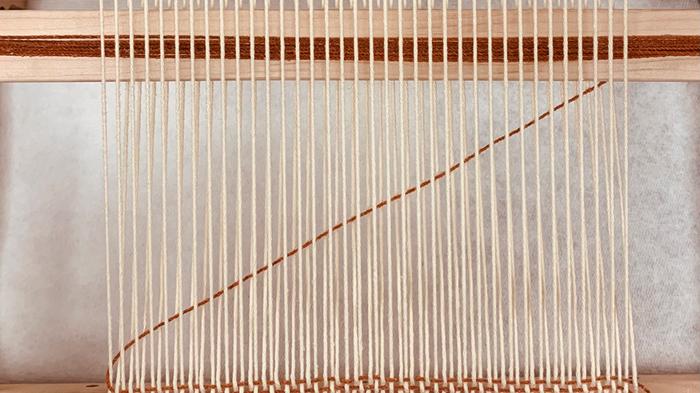

Yarn-shaped supercapacitors created by NC State researchers in the Wilson College of Textiles. Photo courtesy of Nanfei He, NC State University.

view more

Credit: Nanfei He

As interest in wearable technology has surged, research into creating energy-storage devices that can be woven into textiles has also increased. Researchers at North Carolina State University have now identified a “sweet spot” at which the length of a threadlike energy storage technology called a “yarn-shaped supercapacitor” (YSC) yields the highest and most efficient flow of energy per unit length.

“When it comes to the length of the YSC, it’s a tradeoff between power and energy,” said Wei Gao, corresponding author of a paper on the work and an associate professor of textile engineering, chemistry and science at NC State. “It’s not only about how much energy you can store, but also the internal resistance we care about.”

Specifically, the researchers found that YSCs in the 40-60 centimeter range provided the best overall energy output.

Previous research on YSCs has delivered varied and sometimes conflicting results when it comes to length-dependent energy output. The aim of the new study, Gao said, was to provide a consistent, comprehensive model to explain changes in YSC performance across a wide range of lengths.

To do this, researchers first fabricated several YSCs using pairs of activated carbon-incorporated electrode yarns and a gel electrolyte. Nylon threads were wrapped around each yarn to prevent shorting, and then the two electrodes were plied together and coated further with the same gel electrolyte. Researchers created these YSCs in segments ranging from 10 to 300 cm long, and then ran electrical currents of varying frequencies through them. This allowed them to measure two characteristics; internal resistance, which measures how much electrical current is impeded while trying to move through a battery, and capacitance, which is the ability to store electrical energy.

The researchers found that capacitance generally increased linearly with length between 10 and 60 cm, after which gains in capacitance slowed significantly as length increased. The results were also influenced by the frequency of the electricity – or the rate at which the electrical current oscillates. Depending on the electrical frequency of the current, the YSCs would see diminishing gains in capacitance up to the 300 cm in length, though some plateaued at around 150 cm. Mathematical models also showed that YSCs between 40-80 cm exhibited the lowest internal resistance, which led researchers to determine that 40-60 cm was the most efficient length overall.

Lead author Nanfei He, a postdoctoral research scholar at NC State, said the study is part of a larger effort aimed at creating YSCs that can be integrated into clothing.

 “Identifying the optimal length of YSCs is critical for their effective utilization, guiding the development of strategies for seamless integration into fabrics,” He said.

Funding for the study came from the U.S. Army Research Office, and Gao said she imagines early applications for YSCs will be mainly military-focused.

“Imagine you can make a yarn, just a regular textile yarn, that you also make into a battery,” Gao said. “You can basically hide it in your clothing. If you can do that, you can add so many more functions to your clothing.”

More work needs to be done before YSCs become viable for practical applications.

“The technology is not mature yet, and that’s why there is so much funding and so much interest in developing it,” Gao said. “We can make yarn batteries, but can we make them durable, reliable, and safe? Can we make them washable? If you’re going to put it on your body, there are so many other challenges besides its energy-storage functions. Right now we’re focused on the reliability aspect, making sure that if you twist and move the yarn around it will still work. That plus safety are the main issues, and I think once we achieve those two it will broaden the scope of their applications by a lot.”

The paper, “Modeling of yarn-shaped supercapacitors – Unraveling its length dependent output,” is published in Journal of Power Sources. The paper was co-authored by Nanfei He, a postdoctoral researcher at NC State, Xi Zhang, a researcher with the Yancheng Institute of Technology, and Junhua Song and Feng Zhao of Storagenergy Technologies, Inc.

The work was done with support from the U.S. Army Research Office under grant W911NF19C0074 and W911NF18C0086.


Note to editors: The paper abstract follows.

“Modeling of yarn-shaped supercapacitors – Unraveling its length dependent output”

Authors: Nanfei He and Wei Gao, NC State University, Xi Zhang, Yancheng Institute of Technology, and Junhua Song and Feng Zhao, Storagenergy Technologies, Inc.

Published: Jan. 17, 2024 in Journal of Power Sources

DOI: 10.1016/j.jpowsour.2024.234067

Abstract: Yarn-shaped energy-storage devices are promising power sources for electronic textiles, since they carry the possibility to be seamlessly integrated into various fabrics. The energy/power outputs of these devices are inevitably a function of their lengths, the dependence on which is yet to be thoroughly explored. Despite numerous research on yarn-shaped supercapacitors (YSCs) and batteries, the correlation between yarn length and their electrochemical output remains ambiguous, and sometimes even controversial. Herein, a dual transmission-line model for YSCs is created and used to fit the electrochemical impedance spectra (EIS) of YSCs ranging from 10 cm to 300 cm in length. The evolution of equivalent series resistances, electrolyte diffusion resistances and capacitances of YSCs as yarn length increases is investigated. Given the structure and components of YSCs used in this study, a favorable length range of 40–60 cm has been identified to achieve the best electrochemical performance, including the lowest internal resistance and the highest specific capacitance, where the highest energy and power densities sit. The mathematical model introduced in this work provides a reasonable description of the electrochemical behaviors of YSCs in different yarn lengths, offering a theoretical foundation to guide the design of these devices for specific application scenarios.
