“In−N−Out” design enabling high-content triethyl phosphate−based non−flammable and high−conductivity electrolyte for lithium−ion batteries

This study is led by Prof. Jia Xie (School of Electrical and Electronic Engineering, Huazhong University of Science and Technology) and PhD. Ziqi Zeng (School of Electrical and Electronic Engineering, Huazhong University of Science and Technology).

Safety issues related to flammable electrolytes in lithium-ion batteries (LIBs) remain a major challenge for their extended application. The use of non-flammable phosphate−based electrolytes has been proved the validity in inhibiting the combustion of LIBs. However, the strong interaction between Li⁺ and phosphate leads to a dominant solid electrolyte interphase (SEI) with limited electronic shielding, resulting in poor Li⁺ intercalation at the graphite (Gr) anode when using high−phosphate−content electrolytes.

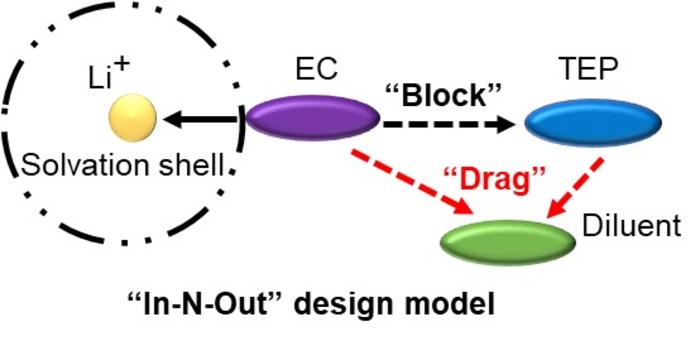

“To mitigate this issue and improve Li⁺ insertion, we propose an “In−N−Out” strategy to render phosphate “non−coordinative”. By employing a combination of strongly polar solvents for a “block effect” and weakly polar solvents for a “drag effect”, the Li⁺−phosphate interaction is reduced. As a result, phosphate remains in the electrolyte phase (“In”), minimizing its impact on the incompatibility with the Gr electrode (“Out”). In designed electrolyte, even if the content of TEP reaches over 60 wt.%, the Gr anode still achieves reversible Li⁺ de−intercalation reaction. Meanwhile, the introduction of strongly polar solvents improves the dissociation of lithium salts, thereby making the electrolyte demonstrate excellent ion conductivity (5.94 mS/cm at 30 ⁰C).” Xie says.

A few implications thus emerge for designing non−flammable electrolytes: 1) the solvents’ coordination ability with Li⁺ could be adjusted by “In−N−Out” strategy; 2) the “drag effect” is universal interaction between weakly polar solvents and TEP, which affords more possibility for designing non−flammable electrolytes.

See the article:

“In−N−Out” Design Enabling High-Content Triethyl Phosphate−Based Non−Flammable and High−Conductivity Electrolyte for Lithium−Ion Batteries

https://doi.org/10.1007/s11426-023-1803-x

---

---
