Optical scanning endoscope via a single multimode optical fiber

Peer-Reviewed Publication

Compuscript Ltd

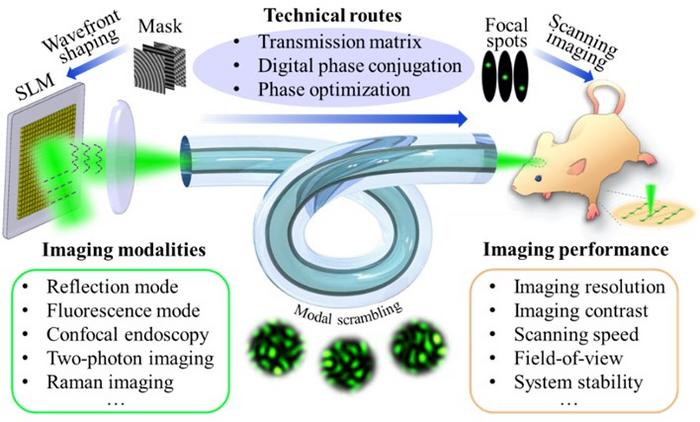

Figure 1. Schematic of MMF scanning endoscope based on wavefront shaping principle. The different technical routes, imaging modalities and some key imaging performance metrics of the MMF scanning endoscope are also illustrated.


view more

Credit: OES

A new publication from Opto-Electronic Science; DOI 10.29026/oes.2024.230041 discusses optical scanning endoscope via a single multimode optical fiber.


Endoscopes are widely employed visual instruments in biomedicine, allowing in-depth, rapid and minimally invasive imaging of objects that cannot be directly accessed from surfaces. To alleviate the discomfort of patients in clinical applications and enhance the reliability of diagnosis, medical endoscopes inherently demand continuous miniaturization, excellent spatiotemporal resolution, and high image quality. Among numerous endoscopes, optical fiber endoscopes provide some unique advantages, such as high flexibility, compact structure, ease of high-temperature sterilization, and resistance to electromagnetic interference. Regarding most imaging applications for relatively large tubular or cavity structures within the human body, the current commercialized fiber bundle endoscopes and single-mode fiber scanning endoscopes already meet the demands effectively. However, when the target application involves some extreme scenarios, such as high-resolution in vivo imaging of deep brain areas, it is still challenging for the current fiber endoscopes. Their footprints are relatively large, preventing them from accessing the desired area of samples for imaging or creating substantial mechanical lesions of the tissues.


Over the past decade, optical fiber endoscopes based on a single multimode optical fiber (MMF) have attracted widespread research interest due to their potential to significantly reduce the footprint of optical fiber endoscopes and enhance imaging capabilities. In comparison with other imaging principles of MMF endoscopes, the scanning imaging method based on the wavefront shaping technique is highly developed and provides benefits including excellent imaging contrast, broad applicability to complex imaging scenarios, and good compatibility with various well-established scanning imaging modalities. A timely and comprehensive review of MMF scanning endoscopes can offer a valuable resource for researchers in this field and facilitate the development of this technique.


The authors of this article review the MMF scanning endoscope based on the wavefront shaping principle and summarize the fundamental focusing and scanning imaging mechanisms, key performance metrics, diverse imaging modalities, and applications of MMF scanning endoscopes, while also offering insights into the prospects of this field.


This review introduces the speckle output characteristics of MMF caused by intermodal dispersion and mode coupling effects. To overcome the disorderly nature of the output light field and generate focused light spots for scanning imaging, this article summarizes three techniques that can counteract the modal scrambling properties of MMF based on the wavefront shaping principle. These techniques include the transmission matrix measurement method, digital phase conjugation method and phase optimization algorithms. This article provides a detailed introduction to the physical principles, experimental implementations, and the latest research progress of these different techniques. The focusing performances of MMFs based on these techniques are also compared. Besides, the all-optical scanning imaging procedures of MMF scanning endoscopes are elaborated.


Subsequently, this article analyzes several key scanning imaging performance metrics of MMF scanning endoscopes and discusses advancements in improving these performance metrics, including imaging resolution, imaging contrast, scanning imaging speed, working distance, field-of-view and stability of the system. So far, the MMF scanning endoscopes have achieved imaging resolution of 250 nm, imaging contrast of 96% and imaging speed of 3.5 fps for 7-kilopixel images. These performance metrics can well satisfy the requirements of many applications. However, the imaging performance of MMF scanning endoscopes is susceptible to external dynamic disturbances. Specifically, when MMFs are subjected to external disturbances, the effectiveness of pre-calibrated wavefront shaping masks is diminished, resulting in a significant deterioration of the generated focal spots and thus affecting the imaging performance. The article summarized the measures proposed in recent years to mitigate this challenge. These measures can generally be divided into two categories: one strategy is to shield the MMF from external disturbances or develop MMFs that are insensitive to disturbances, while the other one is to perform the real-time recalibration of the transmission matrix for MMFs. These methods have greatly enhanced the feasibility of MMF scanning endoscopes in practical application scenarios.


Finally, this article introduces the integration of MMF scanning endoscopes with numerous advanced imaging modalities, including confocal imaging, two-photon imaging, Raman imaging and photoacoustic imaging modalities. The integration of MMF scanning endoscopes with these imaging modalities not only enhances their imaging performance but also significantly expands their application scenarios.


Over the past decade, significant progress has been made in improving the MMF scanning endoscopes. On this basis, some studies have begun to attempt the implementation of this technology in practical settings, such as conducting in vivo imaging of live mouse brains and guiding femtosecond laser ablation in biological samples for selective modifications. Nevertheless, we have to acknowledge that this technique is still in development and is not yet operational in practical applications. Before MMF scanning endoscopes can be widely commercialized, several issues need to be addressed, such as further improving the system’s resistance to external disturbances and promoting imaging speed. With the breakthrough of these bottlenecks, it is believed that MMF scanning endoscopes will find widespread applications in biomedical and other fields, thereby substantially driving the progress of these fields.


# # # # # #
