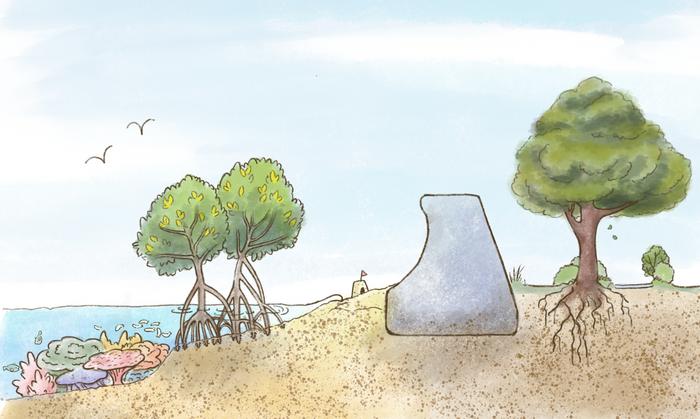

image: This illustration shows natural (coral reef) and soft (replanted mangrove) measures, forming a hybrid defense with the concrete sea wall. Nature-based solutions were recognized as a key option to tackle the “triple planetary crisis” of climate change, pollution and biodiversity loss at the most recent United Nations climate conference, COP28, held in 2023.
Credit: 2024, Nicola Burghall
Common “hard” coastal defenses, like concrete sea walls, might struggle to keep up with increasing climate risks. A new study shows that combining them with nature-based solutions could, in some contexts, create defenses which are better able to adapt. Researchers reviewed 304 academic articles on the performance of coastal defenses around the world, including: natural environments; soft measures (which support or enrich nature); hard measures (such as concrete sea walls); and hybrids of the aforementioned. Soft and hybrid measures turned out to be more cost-effective than hard measures, and hybrid measures provided the highest hazard reduction overall in low-risk areas. Although their comparative performance during extreme events that pose a high risk is not clear due to lack of data, these results still support the careful inclusion of nature-based solutions to help protect, support and enrich coastal communities.
Japan’s dramatic natural coastline, with iconic views of Mount Fuji, wind-blown pines and rocky beaches, has been captured and admired in paintings and prints for hundreds of years. But take a walk by the ocean nowadays and it can be hard to find a stretch that retains its pristine natural seascape. By the early 1990s, a government survey found that around 40% of the coast had been altered with concrete sea walls, filled harbors, stacks of tetrapods and more, adding swaths of gray to the blue-green landscape. Sprawling coastal cities and towns have grown to house most of the population, so protecting homes and businesses from the dangers of tsunamis, typhoon swells and sea-level rise has become an ever-increasing challenge.
“Sea walls, dikes, dams and breakwaters, the so-called traditional hard measures, despite being the most popular coastal defenses globally and with proven track records, are facing challenges to keep pace with increasing climate risks”, explained Lam Thi Mai Huynh, a doctoral student from the graduate program in sustainability science at the University of Tokyo and lead author of a new study on coastal defenses. “These hard structures are expensive to build and require continuous upgrades and repairs as sea level rises and climatic hazards become stronger. Although they are good at mitigating certain coastal disaster risks, they can also cause significant disruption to coastal communities and have adverse environmental effects. Furthermore, they often significantly alter the seascape and sometimes alienate local communities from nature and the very environment we seek to protect.”
To better understand the performance and benefits of different hard and nature-based coastal defenses, an international team compared the results of 304 academic studies. Nature-based coastal defenses included: “natural” ecosystems, for example, existing mangroves and coral reefs; “soft” measures, which restore, rehabilitate, reforest or nourish natural ecosystems; and “hybrid” measures that combine both nature-based components and hard structures, such as placing concrete breakwaters in front of mangroves.
“By incorporating such natural components, we can create coastal defenses that reduce risk and also offer substantial environmental benefits. We believe that such strategies are very promising in many parts of the world, but they are also not a ‘fix-all’ solution,” said Professor Alexandros Gasparatos from the Institute for Future Initiatives at the University of Tokyo.
The researchers analyzed three key aspects of each type of defense: 1. risk reduction (how much the measure could reduce wave height and energy, and influence shoreline change); 2. climate change mitigation (including carbon storage and greenhouse gas emissions for nature-based measures); and 3. cost-effectiveness over a 20-year period.
“Our results indicate that among all coastal defense options in lower-risk areas, hybrid measures provide the highest risk reduction. Hybrid measures can harness the advantages of both hard and soft measures. They provide the immediacy of an engineered barrier while largely maintaining the ecological functionality of a permeable vegetated zone,” said Huynh. “All nature-based solutions are found to be effective in storing carbon, while both soft and hybrid measures are relatively more cost-effective than traditional hard measures over a 20-year period, though all have positive economic returns.”
These findings provide strong evidence for integrating and upscaling nature-based components into coastal defenses, but the team advised doing so with caution. “All types of coastal defenses have yet to be adequately tested through paired experiments in circumstances of extreme events and high-risk urgency,” warned Gasparatos. “Until there are many more such experiments focusing on this, we must caution against any universal assumptions about the comparative performance of coastal defense options, whether natural, soft or hybrid measures.”
While acknowledging the limits imposed by the lack of available research on extreme and high-risk situations, Huynh and Gasparatos still believe that this study supports the idea of investing in nature-based solutions for coastal defense in lower-risk areas. Research like this has important implications for policymakers, coastal planners and communities looking to make evidence-based decisions.
“I firmly believe that we must think more carefully about the design and function of these barriers in this era of ever-accelerating climate change,” said Huynh. “Not only can nature-based solutions contribute to risk reduction and climate mitigation in many areas, but they can also help reconnect people with nature and support biodiversity. Greening our coastlines can create spaces which enhance quality of life, foster community well-being and inspire environmental stewardship.”
#####
Paper Title:
Lam T.M. Huynh, Jie Su, Quanli Wang, Lindsay C. Stringer, Adam D. Switzer, Alexandros Gasparatos. Meta-analysis shows hybrid engineering-natural coastal defences perform best for climate adaptation and mitigation. Nature Communications. April 9th 2024. Doi: 10.1038/s41467-024-46970-w
Funding:
L.H acknowledges the support of Grant-in-Aid Research Fellowship for young Scientist offered by the Japan Society for the Promotion of Science (23KJ0544). A.G is supported by a Grant-in-Aid for Scientific Research A offered by the Japan Society for the Promotion of Science (22H00567). A.D.S. is supported by the Singapore Ministry of Education Academic Research Fund (MOE2019-T3-1-004 and MOET32022-0006).
Useful Links
Graduate Program in Sustainability Science - Global Leadership Initiative: https://www.sustainability.k.u-tokyo.ac.jp/en/
Graduate School of Frontier Sciences: https://www.k.u-tokyo.ac.jp/en/
Institute for Future Initiatives: https://ifi.u-tokyo.ac.jp/en/
Gasparatos Lab: https://www.gasparatos-lab.org/
Research Contact:
Lam Thi Mai Huynh
Graduate School of Frontier Sciences, The University of Tokyo
5-1-5 Kashiwanoha, Kashiwa City 277- 8563, Japan.
Email: lam.huynh@s.k.u-tokyo.ac.jp
Professor Alexandros Gasparatos
Institute for Future Initiatives (IFI), The University of Tokyo
Hongo 7-3-1, Bunkyo-ku, Tokyo 113-0033
Email: gasparatos@ifi.u-tokyo.ac.jp
Press contact:
Mrs. Nicola Burghall
Public Relations Group, The University of Tokyo,
7-3-1 Hongo, Bunkyo-ku, Tokyo 113-8654, Japan
press-releases.adm@gs.mail.u-tokyo.ac.jp
About the University of Tokyo
The University of Tokyo is Japan's leading university and one of the world's top research universities. The vast research output of some 6,000 researchers is published in the world's top journals across the arts and sciences. Our vibrant student body of around 15,000 undergraduate and 15,000 graduate students includes over 4,000 international students. Find out more at www.u-tokyo.ac.jp/en/ or follow us on X (formally Twitter) at @UTokyo_News_en.
Journal
Nature Communications
Method of Research
Literature review
Subject of Research
Not applicable
Article Title
Meta-analysis shows hybrid engineering-natural coastal defences perform best for climate adaptation and mitigation.
Article Publication Date
9-Apr-2024
