Microstructure, elastic/mechanical and thermal properties of CrTaO4: A new thermal barrier material?

Peer-Reviewed Publication

Tsinghua University Press

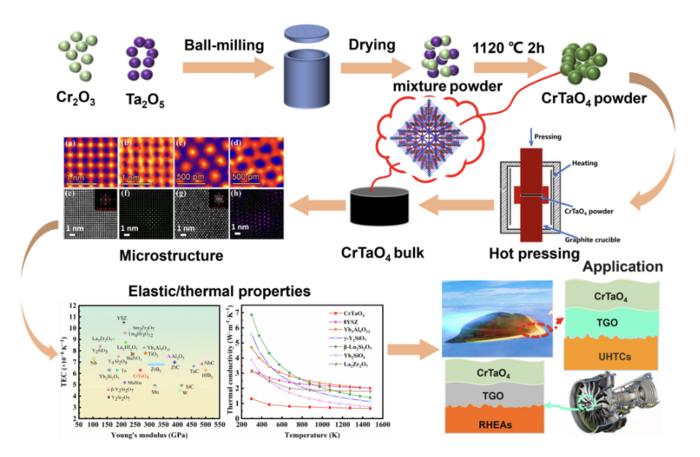

Synthesis process, elastic/thermal properties and potential application of CrTaO4


The CrTaO4 powder and bulk CrTaO4 were synthesized by solid state reaction and hot-press sintering, respectively. Using HAADF and ABF-STEM techniques, the rutile crystal structure of CrTaO4 was confirmed and short-range order was directly observed. Intriguingly, on the ground of moderate thermal expansion coefficient, low thermal conductivity, CrTaO4 is expected a new thermal barrier material for refractory metals and their alloys, refractory high entropy alloys and ultrahigh temperature ceramics.

view more

Credit: Journal of Advanced Ceramics, Tsinghua University Press

Materials scientists have been enchanted by the search for new materials that exceed the temperature capability of Ni-based superalloys for many decades. High melting point and solidus temperatures and elevated temperature strength endow refractory metals (RM) and their alloys materials of choice for this purpose. However, poor oxidation resistance is the main drawback that impedes their applications in oxygen containing environments due to the formation of porous and fasting growing or volatile oxides. Recently introduced new design paradigm of high-entropy alloys has enabled the overcome of such a shortcoming possible due to the vast opened composition space. It is noteworthy that some RHEAs exhibit not only outstanding mechanical properties above beyond 1200 ℃ but also good oxidation resistance through the formation of either well-known protective scale such as Al2O3 or rarely encountered complex oxide CrTaO4. Despite the vast reports on the oxidation behavior of RHEAs, the mechanical and thermal properties of the protective complex oxide CrTaO4 have yet to be studied, and filling this research gap is imperative since this complex oxide has been overlooked for decades.


Recently, a team of material scientists led by Yanchun Zhou from Zhengzhou University, China first reported the synthesis, microstructure, elastic/mechanical properties (hardness, flexural strength and fracture toughness) and thermal properties (melting point, Debye temperature, anisotropic thermal expansion coefficients and thermal conductivity) of bulk CrTaO4. This work not only explains the effect of CrTaO4 on improving the oxidation resistance of Cr and Ta containing high-entropy alloys, but also predicts that CrTaO4 can be used as a new type of high-temperature thermal barrier material.


The team published their work in Journal of Advanced Ceramics on March 29, 2024


“In this report, we synthesized phase-pure CrTaO4 powder by the solid-state reaction between Cr2O3 and Ta2O5. Then, near fully dense bulk CrTaO4 was prepared by hot-press sintering the CrTaO4 powders. The grains are well crystallized with average equiaxed grain size of 2.07±0.73 μm and well faceted shapes. Using HAADF and ABF-STEM techniques, the rutile crystal structure of CrTaO4 was confirmed and short-range order was directly observed,” said Yanchun Zhou, professor at School of Materials Science and Engineering at Zhengzhou University (China), a senior expert whose research interests focus on the field of high-temperature ceramics material.


“CrTaO4 has been unexpectedly found to play a decisive role in improving the oxidation resistance of Cr and Ta-containing RHEAs. However, the mechanical and thermal properties of CrTaO4 have not been reported. For a new material, it is necessary to explore its properties. ” said Yanchun Zhou.


CrTaO4 exhibits elastic/mechanical properties similar to those of yttria stabilized zirconia (YSZ) with Young’s, shear, and bulk modulus of 268, 107, and 181 GPa, respectively, and Vickers hardness, flexural strength, and fracture toughness of 12.2±0.44 GPa, 142±14 MPa, and 1.87±0.074 MPa·m1/2. “The analogous elastic/mechanical properties of CrTaO4 to those of YSZ has spurred inquiries to lucrative leverage it as a new thermal barrier material,” said Yanchun Zhou.


The melting point of CrTaO4 is 2103±20 K. The anisotropic thermal expansion coefficients (TECs) are αa = (5.68±0.10)×106 K1, αc = (7.81±0.11)×106 K1, with an average TEC of (6.39±0.11)×06 K1. The room temperature thermal conductivity of CrTaO4 is 1.31 W·m1·K1 and declines to 0.66 W·m1·K1 at 1473 K, which are lower than most of the currently well-known thermal barrier materials. “From the perspective of matched thermal expansion coefficient, CrTaO4 pertains to an eligible thermal barrier material for refractory metals and ultrahigh temperature ceramics.” said Yanchun Zhou.


However, more delicate research works are still needed to explore the suitability of CrTaO4 as a new thermal barrier material. In this regard, Zhou also put forward five major development directions may be pursued in future works including the CMAS resistance, water vapor resistance, coating deposition methods, stability during plasma deposition, and thermal/structural stability of the coatings during performance.


Other contributors include Shuang Zhang, Huimin Xiang, Cheng Fang, Mingliang Li, Hailong Wang from the School of Materials Science and Engineering at Zhengzhou University in Henan, China; Xiaohui Wang, Chao Zhang from the Institute of Metal Research at Chinese Academy of Sciences in Shenyang, China; Yingwei Li from the School of Civil Engineering at Wuhan University in Wuhan, China.


This work was supported by the National Natural Science Foundation of China (Nos. U23A20562 and 52302074). The authors would like to acknowledge Bin Liu and Yiran Li at Shanghai University for helpful discussion and Guogao Tang at Kaiple Company for TEM performance.
