Advanced sensor technology improves earth radiation monitoring

A new algorithm has been developed to simultaneously estimate multiple shortwave radiation components using data from China's Fengyun-3F satellite. This innovative approach significantly improves the accuracy of key climate metrics, including top-of-atmosphere (TOA) albedo, surface shortwave downward radiation (SWDR), and photosynthetically active radiation (PAR). By refining radiation measurements, this technology marks a major leap forward for climate science, environmental research, and renewable energy applications.

The Earth's radiation budget—the delicate balance between incoming solar energy and outgoing radiation—plays a critical role in shaping climate patterns, ocean currents, and biological processes. Accurate assessment of shortwave radiation components is fundamental to climate models, yet traditional methods struggle with atmospheric complexities and sensor limitations. These challenges have driven the need for more precise and efficient algorithms capable of improving radiation estimations across varying atmospheric conditions.

In a study (DOI: 10.34133/remotesensing.0486) published on April 1, 2025, in Journal of Remote Sensing, a team of researchers from Sun Yat-sen University and the National Satellite Meteorological Center unveiled an advanced algorithm powered by data from the Fengyun-3F satellite’s Earth Radiation Measurement-II (ERM-II) sensor. Unlike conventional techniques, this novel approach effectively captures radiation measurements under all-sky conditions, overcoming obstacles related to mixed scene types and atmospheric variability.

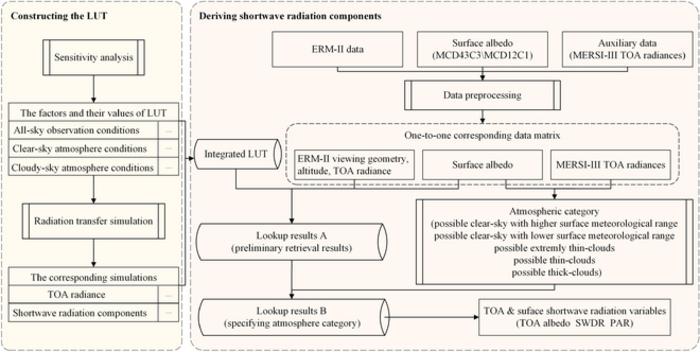

At the heart of the innovation is a look-up table (LUT) framework that enables the simultaneous estimation of top-of-atmosphere (TOA) albedo, shortwave downward radiation (SWDR), and photosynthetically active radiation (PAR) with exceptional precision. By eliminating reliance on complex ancillary data, the algorithm achieves remarkable correlation coefficients—0.87 for TOA albedo, 0.89 for SWDR, and 0.83 for PAR. Its accuracy rivals that of NASA’s widely recognized CERES products while reducing bias in SWDR estimation, setting a new benchmark for satellite-based radiation measurement.

The research team leveraged MODTRAN 6, a sophisticated radiative transfer model, to simulate diverse atmospheric and surface conditions, constructing a robust LUT for precise estimations. The algorithm underwent rigorous validation against real-world data from 21 ground stations and extensive simulated datasets. Results demonstrated strong consistency with radiative transfer simulations, achieving R² values of 0.98 for TOA albedo, 0.96 for SWDR, and 0.96 for PAR. Furthermore, the study introduced advanced atmospheric classification and correction techniques to mitigate long-standing issues such as cloud-snow misclassification and adjacency effects.

“This algorithm represents a significant step forward in satellite-based radiation monitoring,” said Dr. Tianxing Wang, the study’s lead researcher. “By enhancing the accuracy of shortwave radiation estimates, we can improve our understanding of climate dynamics and provide crucial data for environmental decision-making. The implications for climate modeling, solar energy forecasting, and even agricultural applications are profound.”

Beyond its immediate impact on climate research, the new algorithm holds immense potential for practical applications. More accurate radiation data could refine climate models, enhance solar energy projections, and bolster global efforts to combat climate change. Future research aims to optimize the algorithm for high-reflectance surfaces and expand its capabilities to distinguish between direct and diffuse radiation components. As the demand for precise climate monitoring intensifies, this technology stands poised to revolutionize how we measure and interpret the Earth’s radiation budget.

###

References

DOI

10.34133/remotesensing.0486

Originlal Source URL

https://doi.org/10.34133/remotesensing.0486

Funding information

This study is supported in by the National Natural Science Foundation of China (NSFC) under Project (42371342), and the Innovation Group Project of Southern Marine Science and Engineering Guangdong Laboratory (Zhuhai) under Grant 311022003.
