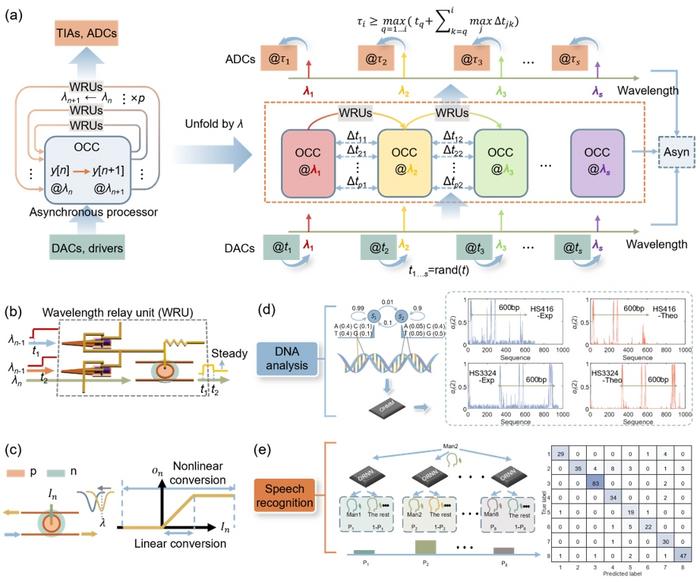

image: Working principle of the asynchronous optical recurrent architecture. a. System diagrams of the optical asynchronous processor. The computing process is unfolded cycle by cycle in the wavelength domain, with the OCC operating in a wavelength-multiplexed mode. ADCs and DACs operate in a quasi-static mode, generating or sampling a single electrical level asynchronously at t1…s and τ1…s. WRU, wavelength relay unit. OCC, optical computing core. b. Information relay based on optical-electrical-optical conversion. The asynchronous input wavelength λn-1 is differentially detected by photodetectors, which subsequently drive the MRM with the supply light of λn. The output signal stabilizes only after all signals from preceding cycles have arrived. c. Transfer function of the WRU, showing selectable linear and nonlinear working regions to accommodate specific requirements. d. The DNA analysis result with fabricated OHMM chip. The structural similarity across a region of 600 base pairs (bp) indicates the primary origin of wild-type mitochondrial DNA replication. e, Speech recognition result with fabricated ORNN chip. Eight-classification accuracy reaches 87.7% using one-versus-rest strategy.
Credit: Wu, B., Zhou, H., Cheng, J. et al.
Modern artificial intelligence (AI) faces critical challenges in energy consumption and processing latency due to the inherent limitations of electronic processors. Optical computing has emerged as a promising alternative; however, state-of-the-art systems depend heavily on frequent optical-electrical conversions and precise synchronization. This issue is particularly pronounced in recurrent AI models, where even slight temporal misalignments can accumulate over iterations, leading to severe signal degradation. These constraints not only impede large-scale parallel processing but also significantly limit overall computational efficiency.
In a recent publication in eLight, several scientists from Huazhong University of Science and Technology, China developed a monolithically integrated asynchronous optical recurrent accelerator. This novel system maps time sequences to wavelength channels, utilizing on-chip wavelength relay units (WRU) to eliminate the requirement for strict synchronization, thereby significantly improving computational efficiency.
“Our design circumvents the conventional reliance on high-speed electronic components for synchronization,” explains by these scientists. “By using wavelength relay units instead of traditional ADCs and DACs, we effectively reduce energy consumption while enabling efficient parallel signal processing.”
The research team successfully implemented two pioneering optical computing models on-chip:
1. Optical Hidden Markov Model (OHMM) chip – Capable of analyzing DNA sequences with an impressive 99% accuracy, demonstrating potential for bioinformatics applications.
2. Optical Recurrent Neural Network (ORNN) chip – Achieved 87.7% accuracy in an 8-class speech recognition task, showcasing its feasibility in real-time AI-driven communication and language processing.
The monolithic integration of these models marks a breakthrough in optical computing, as both operate without the requirements of high-speed electrical synchronization, a long-standing challenge in photonic AI hardware.
The compact chip within 10 mm² footprint integrates hundreds of optical computing components, leveraging the inherent advantages of light-based processing. Unlike traditional electronic AI accelerators, which suffer from power-hungry transistors and heat dissipation issues, this optical accelerator functions with minimal energy overhead.
Furthermore, by utilizing wavelength multiplexing, the architecture efficiently handles high-dimensional parallel computations. This capability is crucial for future AI applications, where processing speed and power efficiency are paramount.
“This breakthrough paves the way for efficient AI computing in autonomous vehicles, smart robotics, and beyond,” note the scientists. “The ability to process massive data streams without electrical synchronization opens new avenues for real-time decision-making in AI systems.”
Looking ahead, the team aims to scale the architecture for commercial AI hardware applications. The combination of high-speed and energy-efficient computation makes this optical accelerator a strong contender for next-generation AI hardware solutions.
With successive advancements in photonic integration and wavelength multiplexing, monolithic asynchronous optical accelerators may soon redefine the landscape of AI processing, bridging the gap between high-performance computing and sustainable energy consumption.
Journal
eLight
Article Title
Monolithically integrated asynchronous optical recurrent accelerator
