Single-layer ultrathin metasurface enables multispectral laser-infrared camouflage and high-efficiency thermal management

Addressing the aforementioned challenges, a collaborative research team from the Hangzhou Institute of Technology (Xidian University) and Huazhong University of Science and Technology propose a single-layer metasurface design integrating cross-band modulation, multispectral camouflage, and broadband heat dissipation. This ultrathin metasurface can simultaneously achieves compatible modulation of near-infrared (NIR), mid-wavelength infrared (MWIR) and long-wavelength infrared (LWIR) electromagnetic waves, providing a solution to decouple the contradiction between functional complexity and structural simplicity in multispectral camouflage materials. The work, titled "Single-layer, cascaded and broadband-heat-dissipation metasurface for multi-wavelength lasers and infrared camouflage," is published in Opto-Electronic Advances (OEA) in early view section.

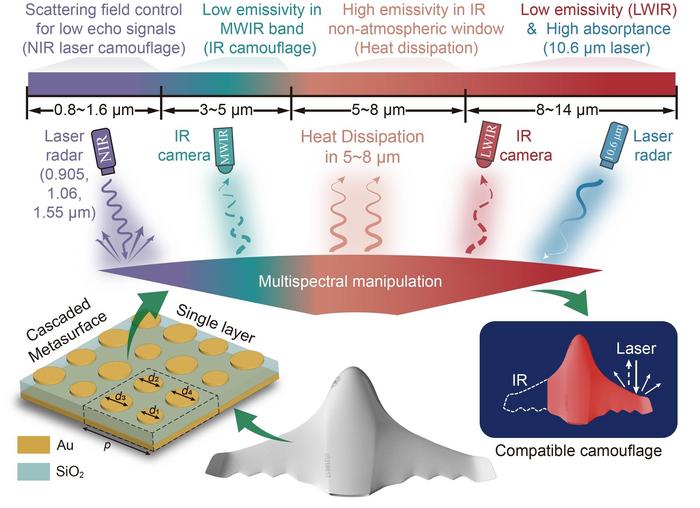

The research team introduced phase modulation into the traditional metal-dielectric-metal configuration of infrared camouflage materials, enabling coverage of additional camouflage bands without increasing structural complexity. The metasurface consists of horizontally cascaded resonant units of varying sizes, positioned above a middle silica dielectric layer and a bottom metal reflective layer. Figure 1 illustrates the proposed metasurface and its spectral modulation strategies across different bands: First, for incident near-infrared electromagnetic waves, the metasurface controls the phase of emitted waves by adjusting the thickness of the dielectric layer, constructing destructive interference in the reflected field to redirect energy toward non-specular directions, thereby suppressing LiDAR echo signals. Second, by precisely designing the dimensions of four resonant units, the metasurface achieves broadband high emissivity in non-atmospheric windows while maintaining low emissivity in thermal imaging windows through amplitude modulation. Finally, leveraging the unique abrupt change in the imaginary part of the refractive index of silica around the 10.6 μm wavelength, the metasurface enables narrowband absorption of 10.6 μm electromagnetic waves via non-local plasmonic resonance. Based on these strategies, this single-layer metasurface simultaneously modulates near-infrared, mid-infrared, and far-infrared electromagnetic waves, achieving multi-wavelength laser-infrared compatible camouflage and high-performance broadband thermal management.

Shan Jiang, an Associate Professor at Xidian University, Xi’an, China. His research focuses on metamaterials, metasurfaces, and flexible electronics. He has published over 30 papers as the first or corresponding author in prestigious international SCI journals such as Advanced Materials, ACS Nano, Advanced Science, and Innovation, including 3 ESI highly cited papers and more than 10 papers in the top-tier journals (Chinese Academy of Sciences, Q1). Additionally, he has authored an English monograph. He has led and participated in projects funded by the National Natural Science Foundation of China (NSFC), the National Key R&D Program, and JKW projects. He serves as a review expert for NSFC in the field of mechanical engineering, the Executive Associate Editor of Biomaterials and Biosensors, and an editorial board member of Cancer Insights. He is also a young editorial board member for journals such as Research, Rare Metals, Soft Science, and FlexMat, as well as a guest editor for SCI journals including Rare Metals and iScience.

YongAn Huang, a Professor at Huazhong University of Science and Technology, Wuhan, China, and the Deputy Director of State Key Laboratory of Intelligent Manufacturing Equipment and Technology. He is a recipient of the Distinguished Young Scholars of NSFC, the Chief Scientist of National Key R&D Projects, and a recipient of the Tencent "Xplorer Prize". His research focuses on flexible electronics and micro/nano manufacturing. He has published nearly 200 SCI papers in top international journals such as PNAS, Science Advances, and Nature Communications. He has authored four monographs and holds over 100 granted national invention patents, along with four U.S. patents. His work has been recognized with awards including the First Prize of the Hubei Provincial Natural Science Award and the First Prize of the Hubei Provincial Technical Invention Award. He serves as the Editor-in-Chief of Soft Science and as an editorial board member for journals such as Science China Technological Sciences, International Journal of Extreme Manufacturing, and Electronics. Additionally, he is the Vice Chairman of the Micro/Nano Manufacturing and Equipment Division and the Micro/Nano Actuators and Microsystems Division of the Chinese Society of Micro/Nano Technology.
