Integrating hard silicon for high-performance soft electronics via geometry engineering

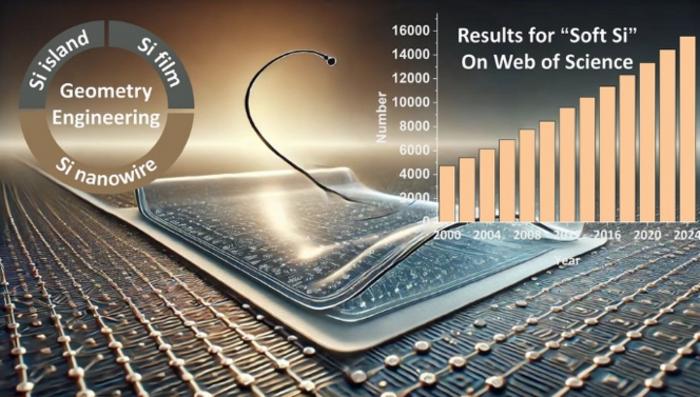

Soft electronics, designed to function under mechanical deformation such as bending, stretching, and folding, have become essential in various applications like wearable electronics, artificial skin, and brain–machine interfaces. Crystalline silicon (c-Si), one of the most mature and reliable materials for high-performance electronic devices, has garnered widespread attention in the field of flexible electronics due to its high electron mobility, stable operation under high current densities, excellent stability at elevated temperatures, and good biocompatibility. However, its intrinsic brittleness and rigidity pose challenges for integrating it into soft electronics. Now, researchers from Nanjing University and Yangzhou University, led by Professor Linwei Yu, present a comprehensive review titled “Integrating Hard Silicon for High-Performance Soft Electronics via Geometry Engineering,” offering valuable insights into how geometry engineering can significantly enhance the flexibility and mechanical properties of c-Si.

Why Geometry Engineering Matters

• Enhanced Flexibility : Through geometry engineering, c-Si can be transformed from “3D bulk materials” to “2D thin films,” and ultimately to “1D nanowires.” This transition greatly enhances the flexibility of silicon, making it suitable for applications requiring mechanical deformation.
• Superior Mechanical Properties : By reducing the size of Si to nanoscale diameters, such as in silicon nanowires (SiNWs), the mechanical properties of Si are significantly improved. SiNWs exhibit enhanced deformation strain, superplasticity, and fracture toughness compared to bulk Si. For example, SiNWs can sustain tensile strains over 10% before failure, a remarkable enhancement compared to bulk Si.
• Excellent Electrical Performance : Geometry engineering allows for the precise control of SiNWs growth and integration, enabling the fabrication of high-performance flexible electronic devices with excellent electrical conductivity and low power consumption. The high surface-to-volume ratio of SiNWs also leads to a giant piezoresistance effect, making them highly sensitive to mechanical stress

Innovative Strategies for SiNWs Fabrication and Integration

• Top-Down Approaches : Techniques such as electron beam lithography (EBL) and metal-assisted chemical etching (MACE) are used to create SiNWs with precise designs and positions. MACE, in particular, is a cost-effective method that allows for the fabrication of vertically aligned SiNWs directly from bulk silicon wafers. However, these methods often face challenges in precisely controlling the nanowire diameter and distribution.
• Bottom-Up Approaches : The vapor–liquid–solid (VLS) mechanism is commonly used to grow SiNWs. By adjusting the size of the catalyst droplets and the liquid–solid interface, the diameter of the resulting SiNWs can be precisely controlled. This method also allows for in-situ doping and maintains high crystallinity throughout the process. However, the use of gold as a catalyst introduces potential contamination issues.
• In-Plane Solid–Liquid–Solid (IPSLS) Growth : IPSLS provides a cost-effective alternative by facilitating lateral SiNWs growth on planar substrates. This technique allows for guided morphological designs and ease of large-scale integration. For example, ultralong sinusoidal spring SiNWs can be grown along programmed step edges, enabling the fabrication of highly elastic SiNW structures.

Detection and Characterization of SiNWs

• Scanning Electron Microscopy (SEM) : SEM is widely used to observe the morphology and structure of SiNWs. It provides high-resolution images of the nanowires, allowing researchers to study their growth patterns and structural characteristics.
• Transmission Electron Microscopy (TEM) : TEM offers atomic-level resolution, revealing the internal structure and defects of SiNWs. By analyzing the TEM images, researchers can gain insights into the growth mechanisms and crystal quality of the nanowires.
• Raman Spectroscopy : Raman spectroscopy is used to study the vibrational modes of SiNWs, providing information on their crystallinity and strain status. It allows for non-destructive characterization of the nanowires and can be used to monitor the effects of different growth conditions and post-growth treatments.

Future Outlook

• Scalability and Cost-Effectiveness : Future research should focus on developing more scalable and cost-effective fabrication techniques for SiNWs. This includes optimizing the growth conditions and catalyst systems to achieve high-yield and uniform SiNWs production.
• Integration with Other Materials : Exploring the integration of SiNWs with other materials, such as polymers and two-dimensional materials, will enable the development of multifunctional soft electronic devices with enhanced performance and functionality.
• Biomedical Applications : The unique properties of SiNWs make them highly promising for biomedical applications, such as biosensors, drug delivery systems, and tissue engineering. Further research is needed to explore the biocompatibility and bio-integration of SiNWs in these applications

Geometry engineering has opened up new possibilities for integrating hard silicon into high-performance soft electronics. With its enhanced flexibility, superior mechanical properties, and excellent electrical performance, silicon nanowires are poised to transform the landscape of flexible electronics. Stay tuned for more exciting breakthroughs in this field!
