High-sensitivity bimodal piezotronic sensor for Achilles tendon monitoring

Researchers from Southwest Jiaotong University have developed a high-sensitivity bimodal piezotronic sensor (BPS) based on Y-ion-doped ZnO, which can simultaneously detect static and dynamic forces. This innovative sensor demonstrates exceptional performance in monitoring Achilles tendon behavior, achieving an accuracy of 96% in identifying different movement patterns.

Why the Bimodal Piezotronic Sensor Matters

• High Sensitivity: The BPS achieves an ultrahigh gauge factor of up to 23,439 and an on/off ratio of 1029, significantly outperforming conventional piezoelectric sensors.
• Bimodal Detection: The sensor can effectively monitor both dynamic and static forces, providing comprehensive data for applications in medical detection and bio-robotics.

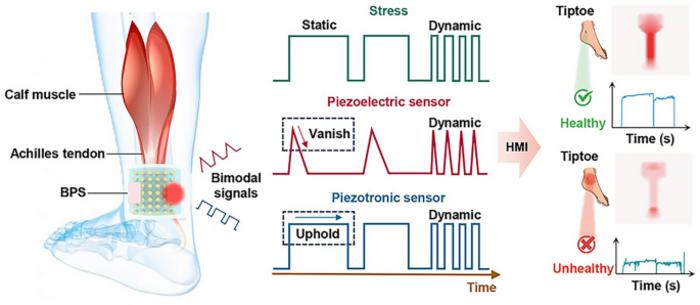

• Achilles Tendon Monitoring: The BPS demonstrates robust capability for continuous monitoring of Achilles tendon behavior, enabling early warnings for hazardous movements and contributing to non-invasive healthcare monitoring.

Innovative Design and Mechanisms

• Piezotronic Effect: The BPS leverages the unique piezotronic effect of Y-ion-doped ZnO to modulate carrier transport by piezoelectric potential, enhancing sensitivity and enabling bimodal detection.
• Finite Element Simulations: The underlying mechanism governing the modulation of carrier transport by piezoelectric potential is elucidated through finite element simulations and experimental validation.
• Deep Learning Integration: The sensor's output is processed using a 1D convolutional neural network (CNN) model, achieving high classification accuracy and robustness in identifying different Achilles tendon states.

Future Outlook

• Scalability and Practical Applications: The scalable synthesis methods and practical configurations of the BPS highlight its potential for real-world applications in wearable electronics and healthcare monitoring.
• Further Research: Future work may focus on optimizing the materials and structures to enhance the sensor's durability and performance. Additionally, integrating the BPS with other advanced technologies could expand its applicability in digital health and intelligent soft robotic systems.
• Mechanistic Insights: This study provides valuable insights into the mechanisms underlying the piezotronic effect, offering a promising path for the development of advanced bimodal sensors.

Stay tuned for more groundbreaking advancements from the research team at Southwest Jiaotong University as they continue to explore innovative solutions for high-sensitivity force detection and healthcare monitoring!
