Coal tar pitch-based hyper-crosslinked polymers derived porous carbon for electromagnetic wave absorption

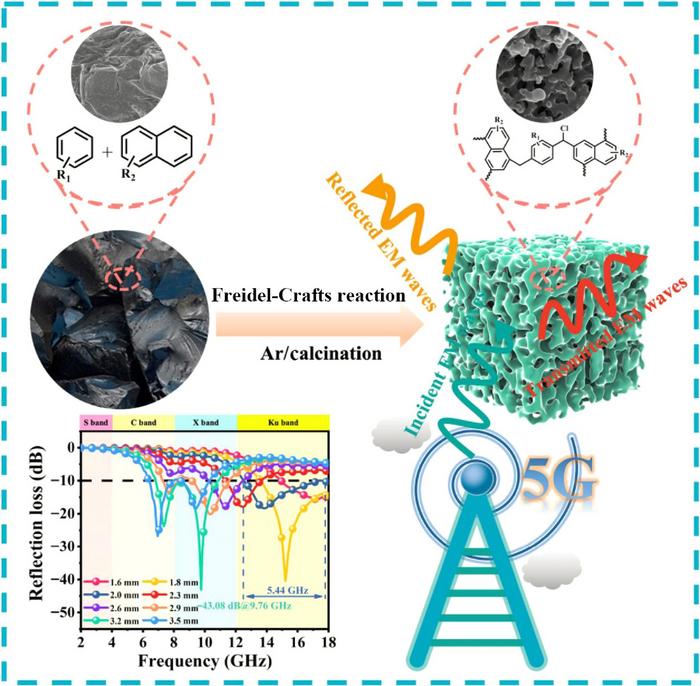

image: Porous carbon materials with good microwave absorption properties were prepared by Friedel-Crafts reaction and high-temperature carbonization using inexpensive coal tar pitch as carbon source. Porous carbon microwave absorption materials showed great potential for practical applications and provided a new method for the high-value utilization of coal tar pitch.
Credit: Nano Research, Tsinghua University Press
Porous carbon (PC) materials have unique structures and excellent physicochemical properties, which offer significant advantages in the field of electromagnetic wave (EMW) absorption materials. However, how to utilize available raw materials and practical preparation techniques is a major challenge for PC microwave absorption materials to achieve engineering applications.
The “Green and Functional Polymer Innovation Team” led by Luke Yan from Chang’an University selected coal tar pitch (CTP), a byproduct of coal tar distillation, as the raw material. Through the Friedel-Crafts reaction and carbonization process, they successfully prepared porous carbon materials with excellent electromagnetic wave properties.
The research team systematically studied the effects of cross-linker type (CH₂Cl₂, CHCl₃, and CCl₄) and carbonization temperature (600℃, 700℃, and 800℃) on the microstructure, crystallization, dielectric, and microwave absorption properties of PC materials. After modulation and optimization, all CTP-based PCs have uniform pore structure with a maximum specific surface area of 533.93 m2/g. The PC with CHCl3 as cross-linking agent carbonized at 700℃ showed the exceptional microwave absorption performance, with the minimum refection loss (RLmin) of −43.08 dB and the maximum effective absorption bandwidth (EABmax) of 5.44 GHz. Meanwhile, the RLmin of CCl4-PC-800 also achieved −47.28 dB. Luke Yan said: “This study has developed a simple and low-cost method for preparing PC microwave absorption materials, which has the potential to enable the mass production and engineering application of PCs, as well as facilitating processing technology innovation and high value-added utilization of CTP.”
Other contributors include Chunjia Luo, Yaofeng Wu, Geqing Zhang, Xi Chen and Min Chao from the School of Materials Science and Engineering, Chang’an University, Xi’an, China.
This work was supported by the National Natural Science Foundation of China (22005039), the Innovation Capability Support Program of Shaanxi (2023-CX-TD-43) and the Fundamental Research Funds for the Central Universities, CHD (300102313208, 300102312403 and 300102314401).
