Machine learning tailored anodes for efficient hydrogen energy generation in proton‑conducting solid oxide electrolysis cells

A groundbreaking article published in Nano-Micro Letters provides a comprehensive blueprint for accelerating green-hydrogen production. Authored by Siyu Ye from Guangzhou University, the study leverages machine learning to create record-breaking anode materials for proton-conducting solid oxide electrolysis cells (P-SOECs), shattering prior performance limits without relying on precious metals.

Why This Research Matters

• Overcoming Noble-Metal Dependence: Conventional electrolyzers demand scarce Pt/Ir catalysts and operate below 0.5 A cm^-2 at <100 °C. ML-designed La_0.9Ba_0.1Co_0.7Ni_0.3O_3₋δ (LBCN9173) anodes deliver 2.45 A cm^-2 at 1.3 V and 650 °C—eliminating platinum entirely while halving cell voltage.

• Enabling More-than-Moore Energy Systems: From grid-scale storage to off-grid ammonia synthesis, P-SOECs with LBCN9173 enable flexible, intermediate-temperature (400–700 °C) hydrogen production that integrates seamlessly with renewable heat and power.

Innovative Design and Mechanisms

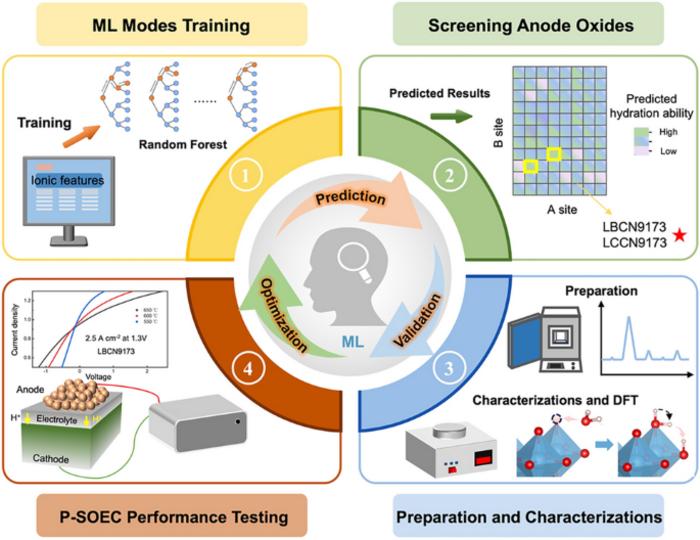

• Machine-Learning-Driven Anodes: A Random-Forest model screened 3,200 perovskites, predicting hydrated-proton concentration (HPC) with R² = 0.90. Ba- and Ca-doped cobalt–nickel perovskites emerged as optimal, balancing lattice expansion, oxygen-vacancy formation, and hydration enthalpy.

• Advanced Electrode Architectures: LBCN9173 exhibits 0.43 eV proton-hopping barriers (vs 0.57 eV for Ca analog), 3.31 eV OER over-potential, and 0.05 Ω cm² polarization resistance—outperforming state-of-the-art MIECs.

• 3D Integration & Thermal Compatibility: 15.4 × 10^-6 K^-1 thermal-expansion coefficient matches BZCYYb4411 electrolyte, enabling co-sintered, 11-μm-thick cells with 100-hour steam/CO₂ stability.

Applications and Future Outlook

• High-Current Electrolysis Arrays: Single cells achieve 1.58 A cm^-2 at 600 °C; 40-hour durability tests at 0.5 A cm^-2 show <1 % degradation, validating stack-level deployment.

• Data-Enriched Materials Genome: The open-source ML workflow, coupled with DFT and DRT analytics, forms a continuously improving platform for next-generation triple-conducting oxides.

• Future Research Directions: Extend ML to co-optimize ASR, TEC, and hydration entropy; scale to 100-layer 3-D printed stacks; integrate waste-heat sources for distributed H₂ hubs.

Conclusions
By uniting explainable AI, rigorous electrochemistry, and scalable fabrication, this work delivers a platinum-free, high-current anode that redefines P-SOEC performance. The ML-materials pipeline not only accelerates discovery but also charts a clear route toward terawatt-scale, carbon-neutral hydrogen ecosystems.
