Advances in metal halide perovskite scintillators for x-ray detection

A panoramic review in Nano-Micro Letters lays out a complete technology roadmap for metal-halide-perovskite (MHP) scintillators, Led by Prof. Xuhui Xu of Guangzhou University, charting a path from record-setting light yields to flexible, AI-enhanced X-ray imagers that promise to redefine medical diagnostics, security screening and industrial inspection.

Why This Work Matters
• Breaking the Light-Yield Ceiling: Lead-free Rb₂CuBr₃ single crystals now deliver 91,056 Ph MeV^-1—more than triple the output of commercial CsI:Tl—while CsPbBr₃ nanocrystal films sustain >95 % PLQY under 40 Gy air dose rates, enabling ultra-low-dose imaging.
• Sub-Nanosecond Timing: Engineered 2D BM₂PbBr₄ crystals achieve 0.97 ns decay (CTR ≈ 65 ps), clearing the bar for Time-of-Flight PET and megahertz CT.
• Flexible & Curved Imaging: In-situ-grown Cs₃Cu₂I₅@polymer scintillators bend to 90° without cracking, eliminating vignetting and delivering 17 lp mm^-1 resolution on non-planar targets—critical for curved electronics and pipeline inspection.
• Multi-Energy & 3D: Stacked scintillators with interlayer optical filters discriminate four spectral bands in a single shot, while trap-engineered CsCdCl₃:Mn²⁺,Zr⁴⁺ stores X-ray energy for hours, enabling 3D thermally-stimulated imaging of complex geometries.

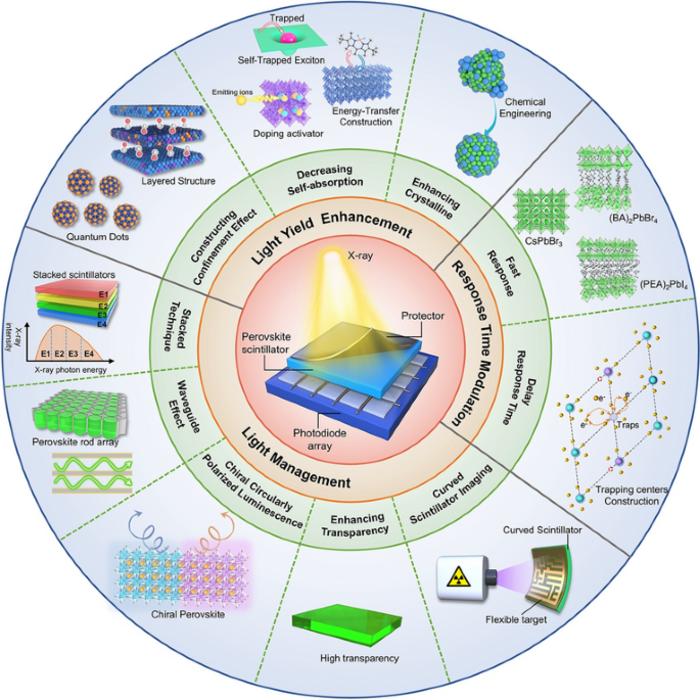

Innovative Design & Mechanisms
• Intrinsic Property Modulation: STE emission (Stokes shift > 200 nm), TADF and quantum-cutting (Yb³⁺) suppress self-absorption; Mn²⁺/lanthanide dopants funnel energy into desired wavelengths, pushing light yields above 150,000 Ph MeV^-1.
• RL Light Engineering:
– Stacked architectures (FAPbI₃ ∥ C₄H₁₂NMnCl₃ ∥ Cs₃Cu₂I₅) deliver energy-resolved imaging at 18 lp mm^-1.
– AAO-embedded nanowire arrays exploit waveguiding to reach 211 lp mm^-1 resolution—an order-of-magnitude jump over bulk plates.
– Circularly-polarized RL from chiral (R/S-3AP)PbBr₃Cl·H₂O quenches inter-pixel crosstalk, enhancing contrast without extra optics.
• Transparent Ceramics: Seed-crystal-induced cold sintering yields 80 % transmittance, 78,000 Ph MeV^-1 (TPP)₂MnBr₄ ceramics that combine high density with optical clarity—bridging the gap between single crystals and films.
• Flexible & Curved Platforms: Vacuum-assisted suction filtration and in-situ polymer crystallization produce 30-µm-thick, crack-free films on polyimide, surviving 10,000 bend cycles while retaining 48 nGy air s^-1 detection limits.

Applications & Future Outlook
• Clinical & Pre-clinical Imaging: Sub-nanosecond timing enhances TOF-PET resolution to <200 ps coincidence, reducing patient dose by >50 %.
• Security & Non-destructive Testing: Delayed-release scintillators enable handheld readers for cargo screening and post-accident radiation mapping without real-time X-ray exposure.
• AI-Enhanced Imaging: Graph-neural-network models, trained on perovskite-property databases, accelerate design cycles—from months to hours—for next-generation, defect-tolerant compositions.
• Scale-up Priorities: 2025–2030 roadmap targets radiation-hardened glass encapsulation, 100-layer 3-D printed stacks and hybrid perovskite-polymer-CG architectures for terapixel flat-panel or curved detectors.

Conclusions
By synergizing compositional engineering, nano-architectonics and AI-guided optimization, MHP scintillators are transitioning from lab curiosities to scalable, application-ready platforms. With lead-free alternatives matching the performance of lead-based benchmarks and flexible formats conquering curved geometries, the field is poised to deliver safer, sharper and smarter X-ray imaging across medicine, industry and security.
