Chiralization of metal-containing dyes upon mere encapsulation

New molecular capsules capable of imparting chiral activity to non-chiral metal-containing dyes were successfully created by self-assembly in water, as reported by researchers from Japan. These capsules have adaptable chiral cavities, inducing chirality of various large and rigid metal-containing dyes upon encapsulation, without requiring typical chemical modification. Moreover, the chiral properties can be tuned with heat, showcasing the potential use in chiral materials and catalysts.

In nature, the concept of chirality or ‘handedness’ is fundamental to life itself, just as our left and right hands are mirror images that cannot be overlapped perfectly. Molecular handedness is crucial in biological systems—the same molecule with different chirality acts as a healthful or toxic compound. Living organisms excel at creating chiral cavities through molecular self-assembly, allowing proteins to bind and transform substrates with high selectivity.

Despite intensive studies in synthetic chemistry, replicating such versatile chiral cavities artificially remains challenging, especially when using a self-assembly approach. Existing approaches often require a step-by-step synthesis of rigid chiral cavities, which limits their applicability. One notable hurdle has been inducing chirality through weak interactions in highly symmetrical molecules, such as those used in advanced materials and catalysts. In particular, metal-containing dyes are difficult to ‘chiralize’ because of their rigid and planar structures.

Against this backdrop, a research team led by Professor Michito Yoshizawa and Assistant Professor Yuya Tanaka from the Laboratory for Chemistry and Life Science at Institute of Integrated Research, Institute of Science Tokyo (Science Tokyo), Japan, has developed an innovative approach to overcome these limitations. Their study, made available online in the Journal of the American Chemical Society on June 16, 2025, reports the creation of chiral capsules that can impart strong chiral properties to inherently non-chiral metal-containing dyes. This paper was published in Volume 147, Issue 26 on July 02, 2025.

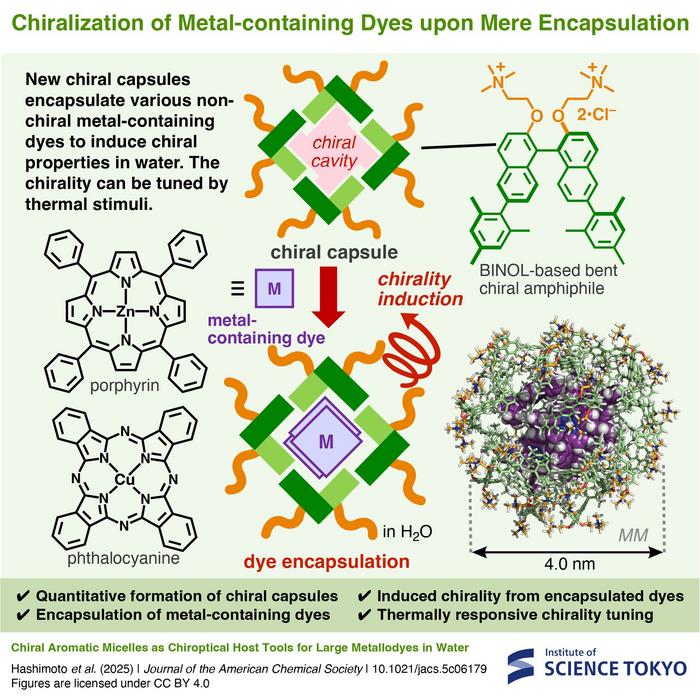

The research team designed bent amphiphilic molecules, meaning that they had both water-loving and water-repelling parts. These were derived from 1,1’-binaphthyl-2,2’-diol or BINOL, a well-known chiral aromatic component. When dissolved in water, the molecules spontaneously self-assemble into spherical chiral capsules approximately three nanometers in diameter. Unlike previous systems, these capsules create closed yet flexible chiral cavities that can adaptively encapsulate various metal-containing dyes, including metalloporphyrins, metallophthalocyanines, and metallonorcorroles.

After optical experimental analyses, the researchers found that encapsulated dyes exhibit strong chiral activity, interacting effectively with polarized light at a level previously impossible to achieve without direct chemical modifications. “To the best of our knowledge, the present capsules are the first molecular tools to induce chiral properties in common metal-containing dyes by simple encapsulation,” highlights Tanaka and Yoshizawa. The team successfully demonstrated chirality induction in several types of metal-containing dyes, including metallophthalocyanines that are notoriously difficult to chiralize because of their relatively rigid and completely planar structures.

Moreover, the researchers discovered that the chiral properties of the encapsulated dyes can be tuned using thermal stimuli. By applying controlled heating, they could irreversibly adjust the intensity of the induced chirality, depending on the dyes. This thermal responsiveness transforms the capsule into a sophisticated nanotool that enables precise control over important molecular properties.

Overall, the present technology could prove useful in fields ranging from fundamental chemistry to applied science, where precise control over molecular chirality is essential. “Our new method allows for the introduction of chiral functionality into metal-containing dyes without procedures for multistep synthesis and complex separation. It holds great promise for the development of advanced photo-functional materials and asymmetric catalysts,” conclude Tanaka and Yoshizawa.

With any luck, further research efforts will keep unlocking new ways of controlling and manipulating chirality to suit our needs.

***
