Built to heal, born to vanish: the promise of iron-manganese alloys in bone healing

When surgeons fix a broken bone, they often use metal plates or screws made from titanium or stainless steel. These materials are durable and safe, but they don't go away. Once the bone heals, the metal remains—sometimes requiring a second surgery for removal.

Researchers have long sought materials that could do the same job temporarily: provide support during healing, then naturally dissolve once the bone recovers. A new review published in International Journal of Extreme Manufacturing highlights a promising candidate, iron-manganese (Fe-Mn) alloys, that may bring this vision closer to reality.

"Iron-based alloys already have excellent strength and safety," explains Prof. Ming-Chun Zhao, corresponding author of the study. "But pure iron degrades too slowly in the body. By adding manganese, we have found a way to make iron-based implants degrade faster, become safer for medical imaging, and even stimulate new bone growth."

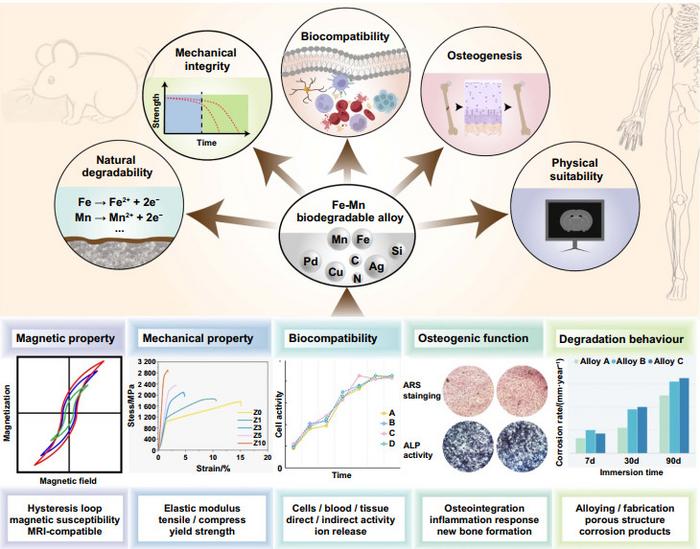

Fe-Mn alloys are special because they combine several key properties that are rarely found in one material. They are strong enough to stabilize healing bones, biocompatible enough to be safely absorbed, and magnetically neutral enough to work with MRI machines that pure iron cannot do. Most remarkably, they can also support bone regeneration by interacting positively with cells and tissues as they degrade. So unlike traditional metals that merely serve as passive supports, these alloys are designed to actively participate in the healing process and then quietly disappear when their work is done.

Manufacturing plays a crucial role in this progress. Using additive manufacturing (3D printing), researchers can design implants with porous structures that mimic natural bone. These precisely controlled porous networks allow the material to degrade at the right pace while encouraging new bone to grow through it.

"If the alloy degrades too slowly, it overstays its usefulness; too quickly, and it might lose strength before the bone is ready. But 3D printing lets us fine-tune both the mechanical performance and the degradation rate and ultimately achieve the right balance."

Although Fe-Mn alloys degrade faster than pure iron, challenges still remain. Inside the body, the corrosion process produces layers rich in calcium and phosphorus that can naturally promote bone growth, but these same layers can slow further degradation. To overcome this, researchers are exploring ways to modify the alloy's composition by adding elements such as silicon, silver, or palladium, or by applying surface coatings that accelerate safe breakdown without compromising strength.

Manganese itself adds an interesting twist. It's not just an ingredient for better degradation but also a biologically essential element involved in bone metabolism and immune function. However, the same property that makes manganese useful also requires caution. If too much manganese is released during degradation, it could pose toxicity risks. Controlling this release is one of the major challenges that researchers are now working to solve.

"We need to strike the right balance between structure, degradation, and biocompatibility," Prof. Zhao explains. "That balance will determine whether these materials can move from the lab into hospitals."

Researchers are developing multi-element alloys with precisely tuned properties, while 3D printing is enabling customized, patient-specific implants that fit each individual's anatomy. New surface coatings could add functions such as antibacterial protection or enhanced bone growth.

But the ultimate test will come through long-term animal and clinical studies to confirm that these materials are not only effective but safe. If those results hold, Fe-Mn alloys could change how orthopedic surgeons approach bone repair by giving strength when it's needed, and then disappearing when they're no longer required.
